OUTDOOR PEDESTAL HOSE BIBB

Model 7000-35-VP & 7100-35-VP

Product Details

OUTDOOR PEDESTAL HOSE BIBB
7000-35-VP - 7100-35-VP
Metal Pedestal Hose Bibbs. The deep, rich Sky Blue color and scratch resistant finish make these an excellent choice for resorts, playgrounds and recreational areas.
Outdoor Hose Bibbs designed to comply to the roughest conditions. Standard features include:
• Column is fabricated from one piece steel pipe.
• All exposed parts are recessed in welded steel plates.
• Loose key spout with vacuum breaker.
• Key operated lock box.
• Vandal resistant access plates for easy maintenance.
• Sky Blue polyester powder coat finish. Optional colors and stainless steel (-SS) available.
NOTE:
2 types of mounting:
1. 14" bury in ground with welded supports to be poured in 4" concrete slab.
2. Surface type with mounting plate welded to pedestal.
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm).
Mounting is Surface type with mounting plate welded to pedestal.
Dimensions
7000-35-VP 32"H x 6-5/8"Dia / with surface mount
7100-35-VP 46"H x 6-5/8"Dia
Download File(s)
7000-35-VP, 7100-35-VP (PDF)
7000-35-VP & 7100-35-VP Spec Sheets
7000-35-VP (RFA)

WATER BOTTLE FILLER STATIONS

7320-bottle-filler-station

Product Details

WATER BOTTLE FILLER STATIONS
7320

TYPE:
Combination wall mounted filtered water bottle filler and handicap accessible drinking fountains.
ARMS:
3/16" sheet steel arms projecting 20" from the wall.
10-3/4" diameter steel pipe with 3/16" wall thickness.
RECEPTORS:
18 gauge stainless steel with chrome plated brass drain plugs on fountains.
Powder coated metal with chrome plated brass drain plug on filler.
BUBBLERS:
Chrome plated brass, locked to receptors with vandal resistant steel guards.
FILLERSPOUT:
Brushed aluminum.
VALVES:
Three (3) chrome plated brass push button assemblies recessed in 1/2' steel plates with adjustable flow regulating valves.
MOUNTING:
Wall type. 30-1/2x30" mounting plate included.
WASTE:
1-1/4" nylon fittings and flex hose.
SUPPLY:
1/2" reinforced vinyl tubing with 1/2" IPS hook-up and stainless steel fittings.
Inline coconut carbon water filter.
FINISH:
Polyester powder coat.
COLOR:
Green.
Optional colors: red, blue, dark bronze, black, silver, sand, yellow, orange and white.
OPTIONS:
-RV reverse fountain heights and filler position.
-SS stainless steel.
Download File(s)
7320 (PDF)

DRINKING FOUNTAINS – WALL MOUNTED

5320-5320-RV-5320-FP-updated-new


Product Details


DRINKING FOUNTAINS - METAL Wall, BARRIER FREE WALL MOUNTED FOUNTAINS
5320, 5320-RV-5320-FP
Striking design with clean, sleek lines. Designed to defy the elements, resist vandals and stand up to hard use. The chrome-plated brass bubbler is locked to the stainless steel receptor. Push button valve is vandal resistant and recessed in steel plate. Vandal resistant bubbler guard.Standard features include:
  • • Woodland green Polyester Powder Coat finish, (Optional colors)
  • • Chrome-plated brass bubbler locked to stainless steel receptor
  • • Push button valve
  • • Bubbler guard
  • • Automatic flow regulation
  • • Supply complete with 1/2" IPS lock shield screwdriver stop
  • • 1-1/4" IPS waste
  • • Front mount
  • • Vinyl Reinforced hose
  Option(s): (Add Suffix)
-RV Reverse heights
-SS Stainless steel
BFCE-15 Cane extension (must be requested at order placement)
BFCE-15-RV Reverse heights
FLWMP-2-FM Support carrier with mounting plate
FLMP-2-RV-FM Same reversed hights
WMP-2-FM Mounting plate
WMP-2-RV-FM Same reversed hights
NOTE:
All-Purpose Drinking Fountain -- Steel pipe Mounting: Wall
These rough-in dimensions may vary 1/2" (13 mm) plus or minus
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm)
Dimensions
5315 13"H x 20" L / Dual wall mounted with backplate (shown)
5315-RV 13"H x 20" L / Same with higher unit on left
5315-FP 13"H x 20" L / With freeze-proof valve system
Download File(s)
5320 (PDF) / 5320 (RFA) / 5320-RV (PDF)

DRINKING FOUNTAINS – WALL MOUNTED

5305-5305-FP-updated-new

Product Details

DRINKING FOUNTAINS - METAL Wall, BARRIER FREE WALL MOUNTED FOUNTAINS
5305-5305-FP
Striking design with clean, sleek lines. Designed to defy the elements, resist vandals and stand up to hard use. The chrome-plated brass bubbler is locked to the stainless steel receptor. Push button valve is vandal resistant and recessed in steel plate. Vandal resistant bubbler guard. Standard features include:
  • • Woodland green Polyester Powder Coat finish, (Optional colors)
  • • Chrome-plated brass bubbler locked to stainless steel receptor
  • • Push button valve
  • • Bubbler guard
  • • Automatic flow regulation
  • • Supply complete with 1/2" IPS lock shield screwdriver stop
  • • 1-1/4" IPS waste
  • • Front mount
  • • Vinyl Reinforced hose
Option(s):
(Add Suffix)
Support carrier with mounting plate FLWMP-1-FM
Mounting plate WMP-1-FM
-SS Stainless steel finish
NOTE:
All-Purpose Drinking Fountain -- Steel pipe Mounting: Wall
These rough-in dimensions may vary 1/2" (13 mm) plus or minus
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm)
Dimensions
5305 8"H x 20" L / Wall mounted
5305-FP 8"H x 20" L / With freeze-proof valve system
Download File(s)
5305, 5305-FP (PDF) / 5305 (RFA)

WATER BOTTLE FILLER STATIONS

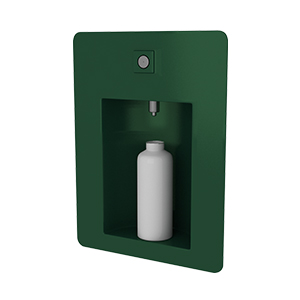

7335-bottle-filler-station

Product Details

WATER BOTTLE FILLER STATIONS - RECESSED
7335

Standard features include:

  • Mounting Plate
  • Woodland green Polyester Powder Coat finish (optional colors are available)
  • Brushed aluminum gravity type filler spout
  • Vandal resistant integral chrome plated brass drain
  • Replaceable in line water filter
  • Push button valve
NOTE:
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm).

Dimensions
7335 24”H x 18”W

Download File(s)
7335(PDF)

METAL PEDESTAL PET FOUNTAINS

Model 9002

Product Details

Metal pedestal pet fountains
9002
Dual Metal Pedestal Pet Fountains. These fountains are an excellent choice for dog parks and recreational areas where pet are welcome.

Pet Fountains Designed to comply with pet needs and withstand the roughest conditions. Standard features include:
• Pedestals are fabricated from steel pipe.
• Brushed aluminum spout is locked to stainless steel receptors and protected with vandal resistant steel guard.
• Recessed self-closing push button valve(s) with outside stream adjustment.
• Slow draining pet fountain receptor with pebble guard drain.
• Woodland Green Powder Coat finish. Optional colors and stainless steel (-SS) are available.
NOTE:
Surface type with mounting plate welded to pedestal.
Pet Fountain -- Steel pipe.
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm).
Dimensions
9002 32"H x 6-5/8" Dia. x 32-1/8"W
Download File(s)
9002 (PDF) / 9002 (RFA)

WATER BOTTLE FILLER STATIONS

7315

Product Details

WATER BOTTLE FILLER STATIONS - WALL MOUNTED
7315
Options: FLWMP-2 Support carrier with mounting plate (recommended).
• RV-Reverse heights.
• FLWMP-2-RV Support carrier with mounting plate (recommended)
Standard features include:
• Woodland green Polyester Powder Coat finish (optional colors are available).
• Brushed aluminum gravity type filler spout
• Vandal resistant integral chrome plated brass drain
• Replaceable in line water filter
• Push button valve
NOTE: All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm). Dimensions
7315 67”H x 20”L Download File(s)
7315 (PDF) / 7315 (RFA)
/ 7315-RV (PDF) / FLWMP-1 (PDF)

METAL PEDESTAL PET FOUNTAINS

Model 9004-MWL

Product Details

Metal pedestal pet fountains
9004-MWL
Wall Mounted Metal Pedestal Pet Fountains. These fountains are an excellent choice for dog parks and recreational areas where pet are welcome.

Pet Fountains Designed to comply with pet needs and withstand the roughest conditions. Standard features include:
• Pedestals are fabricated from steel pipe.
• Brushed aluminum spout is locked to stainless steel receptors and protected with vandal resistant steel guard.
• Recessed self-closing push button valve with outside stream adjustment.
• Slow draining pet fountain receptor with pebble guard drain.
• Woodland Green Powder Coat finish. Optional colors and stainless steel (-SS) are available.
NOTE:
Wall and Surface type with mounting plate welded to pedestal.
Pet Fountain -- Steel pipe.
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm).
Dimensions
9004-MWL 32"H x 6-5/8" Dia. x 19-5/8"W
Download File(s)
9004-MWL (PDF) / 9004-MWL (RFA)

WATER BOTTLE FILLER STATIONS

7730

Product Details

WATER BOTTLE FILLER STATIONS - HI-LOW DRINKING FOUNTAINS
7730 - ADA Compliant Triple Pedestal
Standard features include:
• Woodland green Polyester Powder Coat finish (optional colors are available).
• Brushed aluminum gravity type filler spout
• Vandal resistant integral chrome plated brass drain
• Replaceable in line water filter
• Push button valve
Designed to be a convenient station to refill reusable water bottles with filtered water.
Options:
(Add suffix)
-90 Pet Fountain attached
SMP-10 Surface mounting plate
7300 Water Bottle Filler Station - Wall Mounted
7325 Water Bottle Filler Station - Single Pedestal
7700 Water Bottle Filler Station - Dual Pedestal
NOTE:,
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm).
Dimensions
7730 54”H x 10-3/4”W x 50-3/4”L Download File(s)
7730 (PDF) / 7730 (RFA)

OUTDOOR SHOWER

Model 6200-MWL

Product Details

OUTDOOR SHOWER
6200-MWL
Wall Mounted Metal Pedestal Outdoor Body and Foot Showers. The deep, rich Sky Blue color and scratch resistant finish make these showers an excellent choice for resorts, pools and recreational areas.

Outdoor Showers designed to comply to the roughest conditions. Standard features include:
Column is fabricated from one piece steel pipe.
All exposed parts are recessed in welded steel plates.
Heavy duty, vandal resistant spray heads (2).
Timer controlled, low maintenance water control valves (2).
Vandal resistant access plates for easy maintenance.
Sky Blue Polyester Powder Coat Finish. Optional colors and stainless steel finish available.
Shower & Foot Shower: 6200-MWL with wall and surface mount (shown)
Pedestal Outdoor Shower & Foot Spray -- Steel pipe
NOTE:
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm).
Dimensions
6200-MWL 80"H x 6-5/8"Dia.
Options:
-32 1/2" compression type with standard hose connection and vacuum breaker
-32-LK same as above with loose key
-85 valve box
-SS stainless steel pipe
Download File(s)
6200-MWL (PDF) / 6200-MWL(RFA)

PENTELIC – SHOWER FLOORS WITH LINEAR DRAIN

WDA-3705-3760

Product Details

PENTELIC - SHOWER FLOORS WITH LINEAR DRAIN
WDA-3705-3760
new ADA compliant linear drain terrazzo shower floor
The 14 gauge stainless steel grate is secured to the terrazzo shower floor. Under the grate is a 2” bottom outlet brass drain which cast integral.
Dimensions
WDA-3705 40x38”/ grate is 5” wide x 36” long
WDA-3730 64x32” / the grate is 5” wide x 60” long
WDA-3760 64x38” / the grate is 5” wide x 60” long
Download File(s)
WDA-3705-3760(PDF) / WDA-3705-3760 Series (RFA)

DRINKING FOUNTAINS – METAL PEDESTAL

Model 4400

Product Details

DRINKING FOUNTAINS - METAL PEDESTAL ECONOMY PEDESTAL FOUNTAIN
4400, 4430
Standard features include:
• Woodland green Polyester Powder Coat finish
• Chrome-plated brass bubbler locked to stainless steel receptor
• Push button valve
• Bubbler guard
• Automatic flow regulation
• Supply complete with 1/2" IPS lock shield
• screwdriver stop
• 1-1/4" IPS waste
• Vinyl reinforced hose
Option(s):
(Add Suffix)
SMP-6 Surface mounting plate
-85 Valve box with lid
-96 Sand Strainer Plate
-SS Stainless steel finish
NOTE:
Pedestal Drinking Fountain -- Steel pipe, Mounting: Surface, Push Button bubbler
These rough-in dimensions may vary 1/2" (13 mm) plus or minus
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm).
Dimensions
4400 36"H x 12" Dia. base / Single with surface mount (shown)
4430 36"H x 12" Dia. base / Single with surface mount with level handle
Download File(s)
4400 (PDF) / 4400 (RFA)
4430 (PDF) / 4430 (RFA)

DRINKING FOUNTAINS – METAL PEDESTAL

Model 4300

Product Details

DRINKING FOUNTAINS - METAL PEDESTAL
4300
Standard features include:
Color: Woodland green only
Chrome-plated brass bubbler locked to stainless steel receptor
Automatic flow regulation
1-1/4" IPS waste
UTILITY PEDESTAL FOUNTAIN
Appropriate for playgrounds, shopping areas or any high traffic area where cost is a consideration. Standard features include chrome-plated brass bubbler, locked to stainless steel receptor. Fountain has a cross-arm self-closing chrome-plated valve and a 12" diameter floor flange which gives it an exceptionally sturdy mounting base. Equipped with automatic flow regulation. 3/8" IPS supply. 1-1/4" IPS waste.
NOTE:
Utility Pedestal Drinking Fountain - Metal
These rough-in dimensions may vary 1/2" (13 mm) plus or minus
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm).
Dimensions
4300 35"H x 12" Dia. base / Woodland Green
Download File(s)
4300 (PDF) / 4300 (RFA)

DRINKING FOUNTAINS – COUNTERTOP MODEL

Model DMF-610

Product Details

DRINKING FOUNTAINS - COUNTERTOP MODEL
DMF-610
Deck-mounted drinking fountain with push button operated bubbler
The traditional choice. Push button operated, chrome-plated brass bubbler equipped with flow regulation. Stainless steel receptor. Steel mounting bracket adjusts to countertop thickness of 3/8" to 1-1/2". 3/8" IPS supply, 1-1/4" O.D. tailpiece
Option(s):
WC-8 Remote electric chiller. Conceal the refrigeration unit within the cabinet or wall.
NOTE:
These rough-in dimensions may vary 1/2" (13 mm) plus or minus
Dimensions
DMF-610 Download File(s)
DMF-610 (PDF) / DMF-610 (RFA)

DRINKING FOUNTAINS – METAL PEDESTAL

Model 8400

Product Details

DRINKING FOUNTAINS - METAL PEDESTAL, SAND SMART DRINKING FOUNTAINS SERIES
8400
BUBBLER
These fountains are an excellent choice where sand is prevalent at outdoor volleyball courts & water-front recreational areas.

SAND SMART DRINKING FOUNTAINS SERIES
Designed to comply with ADA requirements and withstand the roughest conditions.

Additional Standard features include:
• Large capacity powder coated trench type drain with removable internal sediment bucket.
• Drains to an exterior drain by others.
NOTE:
All-Purpose Drinking Fountain -- Steel pipe. Mounting:Surface
These rough-in dimensions may vary 1/2" (13 mm) plus or minus
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm)
Dimensions
8400 38-1/4"H x 10-3/4"W x 30-3/4"L / Single surface mount Download File(s)
8400 (PDF) / 8400 (RFA)

DRINKING FOUNTAINS – REFRIGERATED PEDESTAL

Model SPER-3100-C

Product Details

DRINKING FOUNTAINS - REFRIGERATED, AGGREGATE PEDESTAL
SPFR-3101-C - SPFR-3101-Q
SQUARE PEDESTAL FOUNTAINS, Series SPFR-3100 Chilled Pedestal Fountains. Square fountain in aggregate finish. Delivers 8.0 GPH of chilled water refreshment. Option(s):
SMP-24 Square surface mounting plate
NOTE:
Mounting: Surface
These rough-in dimensions may vary 1/2" (13 mm) plus or minus
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm)
Dimensions
SPFR-3100-C 20"W with 24" base Height: 35" / Colorama, light etched
SPFR-3101-C 20"W with 24" base Height: 35" / Colorama, medium etched
SPFR-3100-Q 20"W with 24" base Height: 35" / Quiet Creek, light etched
SPFR-3101-Q 20"W with 24" base Height: 35" / Quiet Creek, medium etched
Download File(s)
SPFR-3100 (PDF) / SPFR-3100 (RFA)

DRINKING FOUNTAINS – METAL PEDESTAL

Model 8700

Product Details

DRINKING FOUNTAINS - METAL PEDESTAL, SAND SMART DRINKING FOUNTAINS SERIES
8700
BUBBLER
These fountains are an excellent choice where sand is prevalent at outdoor volleyball courts & water-front recreational areas.

SAND SMART DRINKING FOUNTAINS SERIES
Designed to comply with ADA requirements and withstand the roughest conditions.

Additional Standard features include:
• Large capacity powder coated trench type drain with removable internal sediment bucket.
• Drains to an exterior drain by others.
NOTE:
All-Purpose Drinking Fountain -- Steel pipe. Mounting:Surface
These rough-in dimensions may vary 1/2" (13 mm) plus or minus
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm)
Dimensions
8700 38-1/4"H x 10-3/4"W x 61-1/2"L / Dual surface mount Download File(s)
8700 (PDF) / 8700 (RFA)

DRINKING FOUNTAINS – METAL PEDESTAL

Model 5925

Product Details

DRINKING FOUNTAINS - METAL PEDESTAL, MULTI PURPOSE BARRIER FREE FOUNTAINS
5925 - 5925-FPS
MULTI PURPOSE BARRIER FREE FOUNTAINS
Designed to conform to the requirements of both adult and children’s ADA Guidelines.
NOTE:
These rough-in dimensions may vary 1/2" (13 mm) plus or minus
5925-FPS:
A patented environment friendly freeze-proof valve system that has no weep hole or pump system. Ideal for high water table or inadequate site drainage applications.
All dimensions subject to manufacturing variance of plus or minus 1/4" (6mm)
Features:
• Santary, will not allow stored water to re-enter the bubbler.
• Prevents cross contamination of water supply with ground waer.
• Minimal amount of water wasted.
Dimensions
5925 40"H x 10-3/4"W x 50-3/4"L / Triple with surface mount (shown)
5925-FP 40"H x 10-3/4"W x 50-3/4"L / With freeze proof valve system
5925-FPS 40"H x 10-3/4"W x 50-3/4"L / Sanifrost valve system
Download File(s)
5925 (PDF) / 5925(RFA)
5925-FP (PDF)
5925-FPS (PDF)

DRINKING FOUNTAINS – AGGREGATE PEDESTAL

Model ADF-3900

Product Details

DRINKING FOUNTAINS - AGGREGATE PEDESTAL
ADF-3900 - ADF-3901
ALL PURPOSE FOUNTAINS Series ADF-3900 Triple bubbler Option(s):
(add suffix)
-FP Frost-proof valve system for year round use
-FPS Sanifrost valve system

31 C.P. Self-closing, plain end jug filler.
32-LK With loose key.
32-SCSelf closing.
32 R.C.P. Compression type hose bibb with hose end and VB
Above items not available on frost-proof fountains.
33-VP With S.S. box and lucking cover
34 C.P. Frost-proof jug filler (for use with frost-proof fountains)
34-FPS Sanifrost jug filler (-FPS units only)
36 Push button jug filler
37 Foot spray
40 Commemorative plaque
42 SS bubbler guard
65 Matching aggregate square step
75 Matching chilling unit with aggregate cover
84 Water filter
85 Frost-proof valve box with lid
95 Sand trap
96 Sand strainer plate
SMP-12 Surface mounting plate
All- Purpose Barrier Free Aggregate Drinking Fountain
Conforming to Americans with Disabilities Act (ADA)
These rough-in dimensions may vary 1/2" (13 mm) plus or minus
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm).
It is recommended that a dual check valve backflow prevention be installed in the waterline going to any FP fountain.
Dimensions
ADF-3900-C 40"H x 12"W x 48"L with 15" / square base, Colorama, light etched
ADF-3900-C-94 40"H x 48"W x 26"L / Colorama, light etched
ADF-3901-C 40"H x 12"W x 48"L with 15" / square base, Colorama, medium etched (shown)
ADF-3900-Q 40"H x 12"W x 48"L with 15" / square base, Quiet Creek, light etched
ADF-3901-Q 40"H x 12"W x 48"L with 15" / square base, Quiet Creek, medium etched
Download File(s)
ADF-3900 (PDF) / ADF-3900 (RFA), ADF-3901-Q (RFA)

DRINKING FOUNTAINS – METAL PEDESTAL

Model 5325

Product Details

DRINKING FOUNTAINS - METAL PEDESTAL, CYLINDRICAL FOUNTAINS
5325 - 5325-FPS
CYLINDRICAL FOUNTAINS
Striking design with clean, sleek lines. Designed to defy the elements, resist vandals and stand up to hard use.
Option(s): (Add Suffix)
-31 R.C.P. self closing, plain end
-32 R.C.P. compression type, hose end and VB
-32-LK with loose key
-32-SC Self closing, hose end and vacuum breaker
-34 C.P. Frost Proof jug filler
-34-FPS Sanifrost
-35 Recessed compression type, hose end and vacuum breaker
-35-VP Same with key operated cover
-37 Foot Spray
-40 Commemorative plaque
-84 Water filter
-85 Ground Valve box with lid.
-86 Attached metal valve box.
-87 Surface Valve box w/ cover plate
-95 Sand Trap
-96 Sand strainer plate
-SS Stainless steel finish
Pedestal Drinking Fountain -- Steel pipe. Mounting: Surface
5325-FPS:
A patented environment friendly freeze-proof valve system that has no weep hole or pump system. (ADD SUFFIX-FPS)
These rough-in dimensions may vary 1/2" (13 mm) plus or minus
A patented environment friendly freeze-proof valve system that has no weep hole or pump system. Ideal for high water table or inadequate site drainage applications.
Features:
Santary, will not allow stored water to re-enter the bubbler.
Prevents cross contamination of water supply with ground waer.
Minimal amount of water wasted.
Dimensions
5325 36"H x 10-3/4"W x 14-1/2" Dia. base / Surface mount (shown)
5325-FP 36"H x 10-3/4"W x 14-1/2" Dia. base / With freeze proof valve system
5325-FPS 36"H x 10-3/4"W x 14-1/2" Dia. base / Sanifrost
Download File(s)
5325 (PDF) / 5325 (RFA)
5325-FP (PDF)
5325-FPS (PDF)

DRINKING FOUNTAINS – METAL PEDESTAL

Model 8800

Product Details

DRINKING FOUNTAINS - METAL PEDESTAL, SAND SMART DRINKING FOUNTAINS SERIES
8800
BUBBLER
These fountains are an excellent choice where sand is prevalent at outdoor volleyball courts & water-front recreational areas.

SAND SMART DRINKING FOUNTAINS SERIES
Designed to comply with ADA requirements and withstand the roughest conditions.

Additional Standard features include:
• Large capacity powder coated trench type drain with removable internal sediment bucket.
• Drains to an exterior drain by others.
NOTE:
All-Purpose Drinking Fountain -- Steel pipe. Mounting:Surface
These rough-in dimensions may vary 1/2" (13 mm) plus or minus
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm)
Dimensions
8800 40"H x 10-3/4"W x 30-3/4"L / Dual bubbler ADA surface mount Download File(s)
8800 (PDF) / 8800 (RFA)

DRINKING FOUNTAINS – AGGREGATE PEDESTAL

Model RPF-3000

Product Details

DRINKING FOUNTAINS - AGGREGATE PEDESTAL
RPF-3000 - RPF-3001
Round pedestal fountain in choice of Colorama or Quiet Creek aggregate.

Standard features for both fountains include:
• Chrome-plated brass bubbler locked to stainless steel receptor
• Push button valve, centered on vandal resistant stainless steel access plate
• Adjustable flow regulation
• Supply complete with 1/2" IPS lock shield screwdriver stop
• 1-1/4" IPS waste
• In-line mesh screen strainer
Option(s): (Add suffix)
-FP Frost proof valve system for year around use.
-FPS Sanifrost valve system
31 C.P. Self-closing, plain end jug filler.
32-LK With loose key.
32-SCSelf closing.
32 R.C.P. Compression type hose bibb with hose end and VB
Above items not available on frost-proof fountains.
33-VP With S.S. box and lucking cover
34 C.P. Frost-proof jug filler (for use with frost-proof fountains)
34-FPS Sanifrost jug filler (-FPS units only)
36 Push button jug filler
37 Foot spray
40 Commemorative plaque
60 Commemorative plaque
75 Matching chilling unit with aggregate cover
84 Water filter
85 Frost-proof valve box with lid
95 Sand trap
96 Sand strainer plate
SMP-12 Surface mounting plate
NOTE:
Round Pedestal Aggregate Drinking Fountain
These rough-in dimensions may vary 1/2" (13 mm) plus or minus
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm).
Dimensions
RPF-3000-C 12" Dia. Height: 36" / Colorama, light etched (shown)
RPF-3001-C 12" Dia. Height: 36" / Colorama, medium etched
RPF-3000-Q 12" Dia. Height: 36" / Quiet Creek, light etched
RPF-3001-Q 12" Dia. Height: 36" / Quiet Creek, medium etched
(See previous page for color samples.)
Download File(s)
RPF-3000 (PDF) / RPF-3000 (RFA), RPF-3001 (RFA)

DRINKING FOUNTAINS – METAL PEDESTAL

Model 5400

Product Details

DRINKING FOUNTAINS - METAL PEDESTAL, BARRIER FREE FOUNTAIN
5400 - 5400-FPS
BARRIER FREE FOUNTAINS
Designed to comply with ADA requirements and withstand the roughest conditions.
Standard features include:
• Pedestal is fabricated from 3/16" wall steel pipe.
• A heavy duty chrome plated brass bubbler locked to receptor protected by a vandal resistant steel guard.
• Push button chrome plated brass valve. Push button recessed in 3/8" steel plate. Adjustable flow regulation.
• Welded bottom plate. Special drain tool supplied for maintenance.
• Heavy 3/8" sheet steel arm projecting from pedestal.
• 18 gauge brush finished stainless steel receptor with a vandal resistant chrome plated brass drain plug.
• Stainless steel supply fittings connected to code certified reinforced tubing.
• Woodland green Powder Coat finish. Optional colors, (no extra charge).
Option(s): (Add Suffix)
-31 R.C.P. self closing, plain end
-32 R.C.P. compression type, hose end and VB
-32-LK with loose key
-32-SC Self closing, hose end and vacuum breaker
-34 C.P. Frost Proof jug filler
-34-FPS Sanifrost
-35 Recessed compression type, hose end and vacuum breaker
-35-VP Same with key operated cover
-37 Foot Spray
-40 Commemorative plaque
-84 Water filter
-85 Ground Valve box with lid.
-86 Attached metal valve box.
-87 Surface Valve box w/ cover plate
-95 Sand Trap
-96 Sand strainer plate
-SS stainless steel finish
Dimensions
5400 38-1/4"H x 10-3/4"W x 30-3/4"L / Single with surface mount (shown)
5400-FP 38-1/4"H x 10-3/4"W x 30-3/4"L / With freeze proof valve system
5400-FPS 38-1/4"H x 10-3/4"W x 30-3/4"L / Sanifrost*
Download File(s)
5400 (PDF) / 5400 (RFA)
5400-FP (PDF)
5400-FPS (PDF)

WATER BOTTLE FILLER STATIONS

7700

Product Details

WATER BOTTLE FILLER STATIONS
7700-90
Standard features include:
• Woodland green Polyester Powder Coat finish (optional colors are available).
• Brushed aluminum gravity type filler spout
• Vandal resistant integral chrome plated brass drain
• Replaceable in line water filter
• Push button valve
Options:
(Add suffix)
90 Pet Fountain attached
SMP-10 Surface mounting plate
NOTE: All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm). Dimensions
7700 59”H x 10-3/4”W x 30-3/4”L Download File(s)
7700-90 (PDF) / 7700 (RFA)

DRINKING FOUNTAINS – AGGREGATE PEDESTAL

Model ADF-3701-C

Product Details

DRINKING FOUNTAINS - AGGREGATE PEDESTAL
ADF-3700 - ADF-3701
BARRIER FREE ACCESS Meets ANSI-117.1-1992, CMHC and Americans with Disabilities Act (ADA) guidelines with WILLIAMS fountains in bold Colorama or subtle Quiet Creek aggregate.

Standard features for the ADF fountain (below) and the APF fountain (on the following page) include:

Chrome-plated brass bubbler(s) locked to stainless steel receptor(s)
Pedestal is mounted on stainless steel plate
All access plates are vandal resistant
Adjustable flow regulation
Supply complete with lock shield screwdriver stop
1-1/4" IPS waste
In-line mesh screen strainer
Option(s):
(add suffix to fountain model number)
-FP Frost-proof valve system for year round use.
-FPS Sanifrost valve system
31 C.P. Self-closing, plain end jug filler.
32-LK With loose key.
32-SCSelf closing.
32 R.C.P. Compression type hose bibb with hose end and VB
Above items not available on frost-proof fountains.
33-VP With S.S. box and lucking cover
34 C.P. Frost-proof jug filler (for use with frost-proof fountains)
34-FPS Sanifrost jug filler (-FPS units only)
36 Push button jug filler
37 Foot spray
40 Commemorative plaque
42 SS bubbler guard
65 Matching aggregate square step
75 Matching chilling unit with aggregate cover
84 Water filter
85 Frost-proof valve box with lid
95 Sand trap
96 Sand strainer plate
SMP-12 Surface mounting plate
All- Purpose Barrier Free Aggregate Drinking Fountain
Conforming to Americans with Disabilities Act (ADA)
These rough-in dimensions may vary 1/2" (13 mm) plus or minus
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm).
It is recommended that a dual check valve backflow prevention be installed in the waterline going to any FP fountain.
Dimensions
ADF-3700-C 40"H x 12"W x 30"L with 15" / square base, Colorama, light etched
ADF-3701-C 40"H x 12"W x 30"L with 15" / square base, Colorama, medium etched (shown)
ADF-3700-Q 40"H x 12"W x 30"L with 15" / square base, Quiet Creek, light etched
ADF-3701-Q Quiet Creek, medium etched
(See following page for color samples.)
Download File(s)
ADF-3700 (PDF) / ADF-3700(RFA), ADF-3701(RFA)

DRINKING FOUNTAINS – WALL MOUNTED

Model 5300

Product Details

DRINKING FOUNTAINS - METAL Wall, BARRIER FREE WALL MOUNTED FOUNTAINS
5300 - 5300-FP
Striking design with clean, sleek lines. Designed to defy the elements, resist vandals and stand up to hard use. The chrome-plated brass bubbler is locked to the stainless steel receptor. Push button valve is vandal resistant and recessed in steel plate. Vandal resistant bubbler guard.

Standard features include:
• Woodland green Polyester Powder Coat finish, (Optional colors)
• Chrome-plated brass bubbler locked to stainless steel receptor
• Push button valve
• Bubbler guard
• Automatic flow regulation
• Supply complete with 1/2" IPS lock shield screwdriver stop
• 1-1/4" IPS waste
• Vinyl Reinforced hose
Option(s):(Add Suffix)
FLWMP-1 Support carrier with mounting plate
WMP-1 Mounting plate
-SS Stainless steel finish
NOTE:
All-Purpose Drinking Fountain -- Steel pipe Mounting: Wall
These rough-in dimensions may vary 1/2" (13 mm) plus or minus
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm)
Dimensions
5300 8"H x 20" L / Wall mounted
5300-FP 8"H x 20" L / With freeze-proof valve system
Download File(s)
5300, 5300-FP (PDF) / 5300 (RFA)

DRINKING FOUNTAINS – PEDESTAL WALL MOUNT

Model 5725-MWL

Product Details

DRINKING FOUNTAINS - METAL Wall, PEDESTAL WALL MOUNT - BARRIER FREE WALL MOUNTED FOUNTAINS
5725-MWL
Striking design with clean, sleek lines. Designed to defy the elements, resist vandals and stand up to hard use. The chrome-plated brass bubbler is locked to the stainless steel receptor. Push button valve is vandal resistant and recessed in steel plate. Vandal resistant bubbler guard.

Standard features include:
Conceals existing plumbing
Wall mounted with the added stability of a pedestal.
NOTE:
All-Purpose Drinking Fountain -- Steel pipe Mounting: Surface
These rough-in dimensions may vary 1/2" (13 mm) plus or minus
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm)
Dimensions
5725-MWL 43-1/4"H x 10-3/4" W x 25-3/8 L / Dual Surface and Wall mounted Download File(s)
5725-MWL (PDF) / 5725-MWL (RFA)

DRINKING FOUNTAINS – PEDESTAL WALL MOUNT

Model 5400-MWL

Product Details

DRINKING FOUNTAINS - METAL Wall, PEDESTAL WALL MOUNT - BARRIER FREE WALL MOUNTED FOUNTAINS
5400-MWL - 5400-MWL-FP
Striking design with clean, sleek lines. Designed to defy the elements, resist vandals and stand up to hard use. The chrome-plated brass bubbler is locked to the stainless steel receptor. Push button valve is vandal resistant and recessed in steel plate. Vandal resistant bubbler guard.

Standard features include:
Conceals existing plumbing
Wall mounted with the added stability of a pedestal.
NOTE:
All-Purpose Drinking Fountain -- Steel pipe Mounting: Wall
These rough-in dimensions may vary 1/2" (13 mm) plus or minus
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm)
Dimensions
5400-MWL 38-1/4"H x10-3/4" W x 25-3/8 L / Surface and Wall mounted (shown)
5400-MWL-FP 38-1/4"H x10-3/4" W x 25-3/8 L / With freeze-proof valve system
Download File(s)
5400-MWL, 5400-MWL-FP (PDF) / 5400-MWL (RFA)

DRINKING FOUNTAINS – AGGREGATE PEDESTAL

Model SPF-3100

Product Details

DRINKING FOUNTAINS - AGGREGATE PEDESTAL
SPF-3100 - SPF-3101
SQUARE PEDESTAL FOUNTAINS, Series SPF-3100 Option(s):
(add suffix to fountain model number)
-FP Frost-proof valve system for year round use
-FPS Sanifrost valve system (add suffix to fountain model number)
-FP Frost-proof valve system for year round use.
-FPS Sanifrost valve system
31 C.P. Self-closing, plain end jug filler.
32-LK With loose key.
32-SCSelf closing.
32 R.C.P. Compression type hose bibb with hose end and VB
Above items not available on frost-proof fountains.
33-VP With S.S. box and lucking cover
34 C.P. Frost-proof jug filler (for use with frost-proof fountains)
34-FPS Sanifrost jug filler (-FPS units only)
36 Push button jug filler
37 Foot spray
40 Commemorative plaque
65 Matching aggregate square step
75 Matching chilling unit with aggregate cover
84 Water filter
85 Frost-proof valve box with lid
95 Sand trap
96 Sand strainer plate
SMP-12 Surface mounting plate
Square Pedestal Aggregate Drinking Fountain
These rough-in dimensions may vary 1/2" (13 mm) plus or minus
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm).
Dimensions
SPF-3100-C 12"W X 12"L Height 36"/ Colorama, light etched
SPF-3101-C 12"W X 12"L Height 36"/ Colorama, medium etched
SPF-3100-Q 12"W X 12"L Height 36"/ Quiet Creek, light etched
SPF-3101-Q 12"W X 12"L Height 36"/ Quiet Creek, medium etched (shown)
Download File(s)
SPF-3100 (PDF) / SPF-3100 (RFA), SPF-3101 (RFA)

DRINKING FOUNTAINS – WALL MOUNTED

Model 5315

Product Details

DRINKING FOUNTAINS - METAL Wall, BARRIER FREE WALL MOUNTED FOUNTAINS
5315 - 5315-FP
Striking design with clean, sleek lines. Designed to defy the elements, resist vandals and stand up to hard use. The chrome-plated brass bubbler is locked to the stainless steel receptor. Push button valve is vandal resistant and recessed in steel plate. Vandal resistant bubbler guard.

Standard features include:
• Woodland green Polyester Powder Coat finish, (Optional colors)
• Chrome-plated brass bubbler locked to stainless steel receptor
• Push button valve
• Bubbler guard
• Automatic flow regulation
• Supply complete with 1/2" IPS lock shield screwdriver stop
• 1-1/4" IPS waste
• Vinyl Reinforced hose
Option(s):(Add Suffix)
-RV Reverse heights
-SS Stainless steel
BFCE-15 Cane extension (must be requested at order placement)
BFCE-15-RV Reverse heights
FLWMP-2 Support carrier with mounting plate
FLMP-2-RV Same reversed hights
WMP-2 Mounting plate
WMP-2-RV Same reversed hights
NOTE:
All-Purpose Drinking Fountain -- Steel pipe Mounting: Wall
These rough-in dimensions may vary 1/2" (13 mm) plus or minus
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm)
Dimensions
5315 13"H x 20" L / Dual wall mounted with backplate (shown)
5315-RV 13"H x 20" L / Same with higher unit on left
5315-FP 13"H x 20" L / With freeze-proof valve system
Download File(s)
5315 (PDF) / 5315 (RFA)
5315-RV, 5315-FP (PDF) / 5315-RV(RFA)

DRINKING FOUNTAINS – BRACKET FOUNTAINS

Model WDF-1020

Product Details

DRINKING FOUNTAINS - BRACKET FOUNTAINS
WDF-1020
Dependability and convenience at minimum cost. Chrome-plated bubbler, stainless steel receptor. Equipped with automatic flow regulation. Bracket of rugged aluminum. 3/8" IPS supply. 1-1/4" IPS waste. NOTE:
Bracket-mounted drinking fountain with lever handle self-closing chrome-plated valve.
These rough-in dimensions may vary 1/2" (13 mm) plus or minus
Dimensions
WDF-1020 9-7/8" Dia / Bracket-mounted drinking fountain with self-closing lever handle valve Download File(s)
WDF-1020 (PDF) / WDF-1020 (RFA)

DRINKING FOUNTAINS – METAL PEDESTAL

Model 4700

Product Details

DRINKING FOUNTAINS - METAL PEDESTAL, BARRIER FREE FOUNTAIN
4700 - 4700-FP
A sophisticated contemporary design. Standard features include:
• Woodland green Polyester Powder Coat finish
• Chrome-plated brass bubbler locked to stainless steel receptor
• Push button valve
• Bubbler guard
• Automatic flow regulation
• Supply complete with 1/2" IPS lock shield
• screwdriver stop
• 1-1/4" IPS waste
• Vinyl reinforced hose
Option(s):
Bibb Faucets:
-31 R.C.P. self closing, plain end
-32 R.C.P. compression type, hose end and VB
-32-LK with loose key
-32-SC Self closing, hose end and vacuum breaker
-34 C.P. Frost Proof jug filler
-34-FPS Same, for -FP models
-35 Recessed compression type, hose end and vacuum breaker
-35-VP Same with key operated cover
-37 Foot Spray
-40 Commemorative plaque
-84 Water filter
-85 Ground Valve box with lid.
-86 Attached metal valve box.
-87 Surface Valve box w/ cover plate
-95 Sand Trap
-96 Sand strainer plate
-SS stainless steel finish
All-Purpose Drinking Fountain -- Metal
These rough-in dimensions may vary 1/2" (13 mm) plus or minus
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm).
Dimensions
4700 34-3/4"H x 36W with 12" Dia. Base / Single with surface mount (shown)
4700-FP 34-3/4"H x 36W with 12" Dia. Base / With frost-proof valve assembly
Download File(s)
4700 (PDF) / 4700(RFA)

DRINKING FOUNTAINS – AGGREGATE PEDESTAL

Model APF-3500

Product Details

DRINKING FOUNTAINS - AGGREGATE PEDESTAL
APF-3500 - APF-3501
ALL PURPOSE FOUNTAINS, Series APF-3500 Option(s):
ADF & APF fountains: (add suffix)
-FP Frost-proof valve system for year round use
-FPS Sanifrost valve system

31 C.P. Self-closing, plain end jug filler.
32-LK With loose key.
32-SCSelf closing.
32 R.C.P. Compression type hose bibb with hose end and VB
Above items not available on frost-proof fountains.
33-VP With S.S. box and lucking cover
34 C.P. Frost-proof jug filler (for use with frost-proof fountains)
34-FPS Sanifrost jug filler (-FPS units only)
36 Push button jug filler
37 Foot spray
40 Commemorative plaque
42 SS bubbler guard
65 Matching aggregate square step
75 Matching chilling unit with aggregate cover
84 Water filter
85 Frost-proof valve box with lid
95 Sand trap
96 Sand strainer plate
-SMP-12 Surface mounting plate
All- Purpose Barrier Free Aggregate Drinking Fountain
Conforming to Americans with Disabilities Act (ADA)
These rough-in dimensions may vary 1/2" (13 mm) plus or minus
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm).
It is recommended that a dual check valve backflow prevention be installed in the waterline going to any FP fountain.
Dimensions
APF-3500-C 35"H x 12"W x 30"L with 15" / square base, Colorama, light etched
APF-3501-C 35"H x 12"W x 30"L with 15" / square base, Colorama, medium etched
APF-3500-Q 35"H x 12"W x 30"L with 15" / square base, Quiet Creek, light etched
APF-3501-Q 35"H x 12"W x 30"L with 15" / square base, Quiet Creek, medium etched

Download File(s)
APF-3500 (PDF) / APF-3500 (RFA), APF-3501 (RFA)

DRINKING FOUNTAINS – REFRIGERATED PEDESTAL

Model SPER-3100-C

Product Details

DRINKING FOUNTAINS - REFRIGERATED, AGGREGATE PEDESTAL
SPFR-3781-C - SPFR-3781-Q
ALL PURPOSE PEDESTAL FOUNTAINS, , Series SPFR-3780 ADA Compliant Chilled Pedestal Fountain. Dual bubbler in Aggregate finish. Delivers 8.0 GPH of chilled water. Option(s):
SMP-24 Square surface mounting plate
NOTE:
All-Purpose Drinking Fountain -- Mounting: Surface
These rough-in dimensions may vary 1/2" (13 mm) plus or minus
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm)
Dimensions
SPFR-3780-C 20"W with 24" base Height: 40" / Colorama, light etched
SPFR-3781-C 20"W with 24" base Height: 40" / Colorama, medium etched
SPFR-3780-Q 20"W with 24" base Height: 40" / Quiet Creek, light etched
SPFR-3781-Q 20"W with 24" base Height: 40" / Quiet Creek, medium etched
Download File(s)
SPFR-3780 (PDF) / SPFR-3780 (RFA)

DRINKING FOUNTAINS – COUNTERTOP MODEL

Model DMF-620

Product Details

DRINKING FOUNTAINS - COUNTERTOP MODEL
DMF-620
Remote push button control permits the control to be placed in a more convenient location. Chrome-plated brass bubbler. Equipped with flow regulation. Stainless steel receptor. Steel mounting bracket adjusts to countertop thickness of 3/8" to 1-1/2". 3/8" IPS supply, 1-1/4" O.D. tailpiece. NOTE:
Deck-mounted drinking fountain with with remote push button control
These rough-in dimensions may vary 1/2" (13 mm) plus or minus
Dimensions
DMF-620 Download File(s)
DMF-620 (PDF) / DMF-620 (RFA)

DRINKING FOUNTAINS – METAL PEDESTAL

Model 5380

Product Details

DRINKING FOUNTAINS - METAL PEDESTAL
5380
ROUND CHILLED PEDESTAL FOUNTAINS, Polyester Powder Coated Metal Pipe Type.
Standard color is Woodland Green. Optional colors available.
Delivers 8.0 GPH of chilled water refreshment.
Available in single, double or triple bubbler styles.
Option(s):
-SMP-24 Square surface mounting plate
NOTE:
Drinking Fountain -- Steel pipe Mounting: Surface
These rough-in dimensions may vary 1/2" (13 mm) plus or minus
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm)
Dimensions
5380 18" Dia. with 22-1/2" Dia. base plate / Standard, Single bubbler.
Download File(s)
5380 (PDF) / 5380 (RFA)

DRINKING FOUNTAINS – WHITE SATINSTONE

Model WDF-1040

Product Details

DRINKING FOUNTAINS - WHITE SATINSTONE
WDF-1040
Ultra-smooth finish and fluid lines. The material is fused from refined white marble powder and poly resin, producing a pure white color throughout. Chrome-plated brass bubbler. Equipped with flow regulation, push button valve. Vandal resistant stainless steel bottom cover plate. Supply is compete with 1/2" IPS lock shield screwdriver stop. 1-1/4" IPS waste. NOTE:
Traditional Wall-mounted Drinking Fountain -- White Satinstone
These rough-in dimensions may vary 1/2" (13 mm) plus or minus
Dimensions
WDF-1040 15"H x 14-1/4W x 12-1/4"L / Handicap accessible. Dual bubbler Download File(s)
WDF-1040 (PDF) / WDF-1040 (RFA)

DRINKING FOUNTAINS – METAL PEDESTAL

Model 5380

Product Details

DRINKING FOUNTAINS - METAL PEDESTAL HANDICAP ACCESSIBLE
5780 - 5980
ROUND CHILLED PEDESTAL FOUNTAINS, Polyester Powder Coated Metal Pipe Type.
Standard color is Woodland Green. Optional colors available.
Delivers 8.0 GPH of chilled water refreshment.
Available in single, double or triple bubbler styles.
Option(s):
SMP-24 Square surface mounting plate
NOTE:
All-Purpose Drinking Fountain -- Steel pipe Mounting: Surface
These rough-in dimensions may vary 1/2" (13 mm) plus or minus
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm)
Dimensions
5480 18" Dia. with 22-1/2" Dia. base plate / Handicap accessible. Single bubbler
5780 18" Dia. with 22-1/2" Dia. base plate / Handicap accessible. Dual bubbler
5980 18" Dia. with 22-1/2" Dia. base plate / Handicap and child accessible. Triple bubbler.
Download File(s)
5480 (PDF) / 5480 (RFA)
5780 (PDF) / 5780 (RFA)
5980 (PDF) / 5980 (RFA)

DRINKING FOUNTAINS – BRACKET FOUNTAINS

Model WDF-1025

Product Details

DRINKING FOUNTAINS - BRACKET FOUNTAINS
WDF-1025
Dependability and convenience at minimum cost. Chrome-plated bubbler, stainless steel receptor. Equipped with automatic flow regulation. Bracket of rugged aluminum. 3/8" IPS supply. 1-1/4" IPS waste. NOTE:
Bracket-mounted drinking fountain with lever handle self-closing chrome-plated valve.
These rough-in dimensions may vary 1/2" (13 mm) plus or minus
Dimensions
WDF-1025 9-7/8" Dia / Bracket-mounted drinking fountain with push button operated bubbler Download File(s)
WDF-1025 (PDF) / WDF-1025 (RFA)

DRINKING FOUNTAINS – AGGREGATE WALL MT

Model WDF-1060

Product Details

DRINKING FOUNTAINS - AGGREGATE WALL MT
WDF-1060 - WDF-1061
BARRIER FREE designs in choice of contemporary or classic styling.
Meets ADA guidelines. Push button operated valve. Chrome-plated brass bubbler is locked to the stainless steel receptor. Equipped with adjustable flow regulation. Supply is complete with 1/2" IPS lock shield screwdriver stop. 1-1/4" IPS waste. Vandal resistant bottom plate is standard.
WDF-1060-C Barrier Free. Cascading river stones and aggregate in Corlorama that provides color, texture and beauty.
Option(s):
-FP Frost-proof valve system.
WC-8 Chiller, 8.0 GPH
WG-1 Louvered grill, stainless steel
Available Colors:
Colorama, Light Etched Medium (-C)
Quiet Creek, Light Etched Medium (-Q)
NOTE:
Barrier Free Wall-Mounted Terrazzo Drinking Fountain
These rough-in dimensions may vary 1/2" (13 mm) plus or minus.
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm).
Dimensions
WDF-1060(-C/-Q) 9-1/2"H x 14"W x 19-3/4"L / Light etched
WDF-1061(-C/-Q) 9-1/2"H x 14"W x 19-3/4"L / 9-1/2"H x 14"W x 19-3/4"L

Download File(s)
WDF-1060-C (PDF) / WDF-1060 (RFA), WDF-1061 (RFA)

SPLASH CATCHER

BP-2

Product Details

Stainless Steel Back Panels
BP-2-28
Hose and Wall Bracket
Add Suffix “BP” to the model number of any Stern-Williams service sink. Protect wallboard against damage and deterioration. The 12” high panels channel water into the basin, cover the face and lower edges of the wallboard, and protect against worker carelessness. Type 304, 20-gauge stainless steel.

Back splash catcher panels of 20 ga. type 304 stainless steel. Shown: BP-2-28

SINGLE PANEL Specify size* 24”, 28”,
32” or 36” *(i.e., BP-1-24”)

TWO PANELS, ONE CORNER Specify
size* 24”, 28”, 32” or 36” square or 24 x 36” *(i.e., BP-2-24”)

THREE PANELS, TWO CORNERS
Specify size* 24”, 28”, 32” or 36” square or 24 x 36” *(i.e., BP-3-24”)
Download File(s)
BP (PDF)

DRINKING FOUNTAINS – TERRAZZO WALL MT

Model WDF-1001

Product Details

DRINKING FOUNTAINS - TERRAZZO WALL MT.
WDF-1000 - WDF-1001
Chrome-plated bubbler is locked to the stainless steel receptor. Push button valve. Equipped with adjustable flow regulation. Supply is complete with 1/2" IPS lock shield screwdriver stop. 1-1/4" IPS waste. Vandal resistant bottom plate is standard.

Series WDF-1000 Terrazzo in choice of eight colors:
- Alpine Green
- Antique Gold
- Antique White
- Cactus Green
- Oxblood
- Putty
- Solver Tone
- Smoke
Option(s):
-FP Frost-proof valve system.
WC-8 Chiller, 8.0 GPH
WG-1 Louvered grill, stainless steel
Marble is a product of nature and is subject to natural variations. Complete color uniformity can not be assured.
NOTE:
Traditional Wall-Mounted Drinking Terrazzo Fountain
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm).
Dimensions
WDF-1000 10"H x 12"W x 12-7/8"L / Polished smooth
WDF-1001 10"H x 12"W x 12-7/8"L / Light etched (shown right)

Download File(s)
WDF-1000, WDF-1001 (PDF) / WDF-1000 (RFA)

THE HILOW

HILOW HL-1800

Product Details

THE HILOW
HL-1800 - HL-2110
These units were developed when the need arose to more efficiently drain power-driven floor maintenance equipment. Their drop front styling allows the janitor to automatically dump waste water.

Made from the same high quality materials as all other Stern-Williams products, the CORLOW and HILOW series have the stainless steel cap cast into the threshold to protect the area of greatest use. In addition, the HILOW series is also available with caps on all horizontal shoulders. Tiling flange may be added to customize any sink to meet your specifications.
NOTE:
12" corner type w/drop front.
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm).
Dimensions
HILOW SQUARE - S.S. Cap on threshold
HL-1800 - 24x24x12"
HL-1900 - 32x32x12"
HL-2000 - 36x36x12"

HILOW SQUARE - S.S. Cap on all sides
HL-1810 - 24x24x12"
HL-1900 - 32x32x12"
HL-2010 - 36x36x12"

HILOW RECTANGULAR - S.S. Cap on threshold
HL-2100 - 36x24x12"

(All Sides)
HL-2110 - 36x24x12"

Download File(s)
HL-1800-2010(PDF) / HL-1800-2000 (RFA), HL-1810-2010 (RFA), HL-2100 (RFA), HL-2110 (RFA)

DRINKING FOUNTAINS – METAL PEDESTAL, BARRIER FREE FOUNTAIN

Model 5700

Product Details

DRINKING FOUNTAINS - METAL PEDESTAL, BARRIER FREE FOUNTAIN
5700 - 5700-FPS
BARRIER FREE FOUNTAIN
Striking design with clean, sleek lines. Designed to defy the elements, resist vandals and stand up to hard use.
Option(s): (Add Suffix)
-31 R.C.P. self closing, plain end
-32 R.C.P. compression type, hose end and VB
-32-LK with loose key
-32-SC Self closing, hose end and vacuum breaker
-34 C.P. Frost Proof jug filler
-34-FPS Sanifrost
-35 Recessed compression type, hose end and vacuum breaker
-35-VP Same with key operated cover
-37 Foot Spray
-40 Commemorative plaque
-84 Water filter
-85 Ground Valve box with lid.
-86 Attached metal valve box.
-87 Surface Valve box w/ cover plate
-95 Sand Trap
-96 Sand strainer plate
-SS Stainless steel finish
Pedestal Drinking Fountain -- Steel pipe. Mounting: Surface
5700-FPS:
A patented environment friendly freeze-proof valve system that has no weep hole or pump system. Ideal for high water table or inadequate site drainage applications.
Dimensions
5700 40"H x 10-3/4"W x 30-3/4"L / Dual with surface mount (shown)
5700-FP 40"H x 10-3/4"W x 30-3/4"L / With freeze proof valve system
5700-FPS 40"H x 10-3/4"W x 30-3/4"L / Sanifrost
Download File(s)
5700 (PDF) / 5700 (RFA)
5700-FP (PDF)
5700-FPS (PDF)

DRINKING FOUNTAINS – TERRAZZO WALL MT

Model WDF-1050

Product Details

DRINKING FOUNTAINS - TERRAZZO WALL MT
WDF-1050 - WDF-1051
Specify Terrazzo for a touch of Old World elegance and beauty.
BARRIER FREE designs in choice of contemporary or classic styling. Meets ADA guidelines. Push button operated valve. Chrome-plated brass bubbler is locked to the stainless steel receptor. Equipped with adjustable flow regulation. Supply is complete with 1/2" IPS lock shield screwdriver stop. 1-1/4" IPS waste. Vandal resistant bottom plate is standard.
Series WDF-1050 Please specify color from choice of 8 colors shown on the 'Color and Accessories' page. Model number indicates finish.
Option(s):
-FP Frost-proof valve system.
WC-8 Chiller, 8.0 GPH
WG-1 Louvered grill, stainless steel
NOTE:
Barrier Free Wall-Mounted Terrazzo Drinking Fountain
These rough-in dimensions may vary 1/2" (13 mm) plus or minus.
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm).
Dimensions
WDF-1050 10-7/8"H x 12"W x 22"L / Polished smooth (shown above)
WDF-1051 10-7/8"H x 12"W x 22"L / Light etched
Download File(s)
WDF-1050 (PDF) / WDF-1050 (RFA), WDF-1051 (RFA)

DRINKING FOUNTAINS – REFRIGERATED S.STEEL

Model BFR-6075

Product Details

STAINLESS STEEL BARRIER FREE REFRIGERATED DRINKING FOUNTAINS
BFR-6075
Sensor operated. Uses standard 110V, 60-cycle electrical connection. U.L. listed. 8.0 gph
Mounting Frame: BFMF-1
Barrier Free, Wall-mounted Drinking Fountain -- Stainless Steel, Sensor Operated
These rough-in dimensions may vary 1/2" (13 mm) plus or minus.
NOTE:
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm).
Dimensions
BFR-6075 33-1/2"H x 19"W with 18-1/2" extension. Recesses into wall: 12"
Download File(s)
BFR-6075 (PDF) / BFR-6075 (RFA)

DRINKING FOUNTAINS – REFRIGERATED S.STEEL

Model BFR-6050

Product Details

STAINLESS STEEL BARRIER FREE REFRIGERATED DRINKING FOUNTAINS
BFR-6050
With traditional BEVELED front and push button on front panel. 8.0 gph
Mounting Frame: BFMF-1 Barrier Free, Dual Level Wall-mounted Drinking Fountain -- Stainless Steel, Push Button on Front Panel
NOTE:
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm).
Dimensions
BFR-6050 33-1/2"H x 19"W with 18-1/2" extension. Recesses into wall: 12"
Download File(s)
BFR-6050 (PDF) / BFR-6050 (RFA)

DRINKING FOUNTAINS – REFRIGERATED S.STEEL

Model BFR-6025

Product Details

STAINLESS STEEL BARRIER FREE REFRIGERATED DRINKING FOUNTAINS
BFR-6025 - BFR-6025-RV
Dual level, sensor and push button operated. Controls located on front panel. Sensor uses standard 110V, 60-cycle electrical connection. U.L. listed. 8.0 gph
Mounting frame: BFMF-2
Option(s):
BFR-6025-RV Reverse height option
BFCA-1 Cane touch apron for ADA protruding objects compliance Barrier Free, Dual Level Wall-mounted Drinking Fountain -- Stainless Steel, Push Button on Front Panele
NOTE:
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm).
Dimensions
BFR-6025 35-7/8"H x 35"W with 18-1/2" extension. Recesses into wall: 12"
BFR-6025-RV Reverse height option
Download File(s)
BFR-6025 (PDF) / BFR-6025 (RFA)
BFR-6025-RV (PDF) / BFR-6025-RV (RFA)

DRINKING FOUNTAINS – REFRIGERATED S.STEEL

Model BFR-6000

Product Details

STAINLESS STEEL BARRIER FREE REFRIGERATED DRINKING FOUNTAINS
BFR-6000 - BFR-6000-RV
Dual level with push button on the front panel. 8.0 gph.
Mounting frame: BFMF-2
Recesses into wall: 12"
Option(s):
BFCA-1 Cane touch apron for ADA protruding objects compliance Barrier Free, Dual Level Wall-mounted Drinking Fountain -- Stainless Steel, Push Button on Front Panel
NOTE:
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm).
Dimensions
BFR-6000 35-7/8"H x 35"W with 18-1/2" extension
BFR-6000-RV Reverse height option
Download File(s)
BFR-6000 (PDF) / BFR-6000 (RFA), BFR-6000-RV (RFA)

DRINKING FOUNTAINS – STAINLESS STEEL WALL MT

Model SF-5110

Product Details

STAINLESS STEEL WALL-MOUNTED DRINKING FOUNTAINS
SF-5110
Lustrous satin-finish stainless steel satisfies the criteria for cleanliness and easy care in medical centers and office buildings.

Push button control located on front panel. Vandal resistant bottom plate and mounting plate are standard.
BEVELED front without back plate.
Option(s):
-FP Frost-proof valve for year around use, for fountains to be mounted on exterior wall of building. Barrier Free Stainless Steel Wall Mounted Drinking Fountain Without Back Plate
These rough-in dimensions may vary 1/2" (13 mm) plus or minus
NOTE:
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm).
Dimensions
SF-5110 7"H x 12"W with 12-1/2" extension Download File(s)
SF-5110 (PDF) / SF-5110 (RFA)

DRINKING FOUNTAINS – STAINLESS STEEL WALL MT.

Model SF-5100

Product Details

STAINLESS STEEL WALL-MOUNTED DRINKING FOUNTAINS
SF-5100
Lustrous satin-finish stainless steel satisfies the criteria for cleanliness and easy care in medical centers and office buildings.

Push button control located on front panel. Choice of models with or without protective back plate. Vandal resistant bottom plate and mounting plate are standard.
Traditional BEVELED front with stainless steel back plate.
Option(s):
-FP Frost-proof valve for year around use, for fountains to be mounted on exterior wall of building. Wall-mounted Drinking Fountain -- Stainless Steel
These rough-in dimensions may vary 1/2" (13 mm) plus or minus
NOTE:
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm).
Dimensions
SF-5100 9-5/8"H x 19"W with 13" extension Download File(s)
SF-5100 (PDF) / SF-5100 (RFA)

DRINKING FOUNTAINS – STAINLESS STEEL WALL MT

Model BF-5040

Product Details

STAINLESS STEEL WALL-MOUNTED DRINKING FOUNTAINS
BF-5040
STAINLESS STEEL Wall-Mounted Drinking Fountains
Barrier free drinking fountains serve wheelchair users and the general public. WILLIAMS models meet ANSI-117.1-1992, ADA and CMHC guidelines.

BEVEL front single level with push button on front panel. Without back plate and with vandal resistant bottom plate and mounting plate.
Option(s):
-FP Frost-proof valve for year around use. Available on all models shown above. Barrier Free Stainless Steel Wall Mounted Drinking Fountain Without Back Plate
These rough-in dimensions may vary 1/2" (13 mm) plus or minus
NOTE:
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm).
Dimensions
BF-5040 7"H x 12"W with 18" extension Download File(s)
BF-5040 (PDF) / BF-5040 (RFA)

DRINKING FOUNTAINS – STAINLESS STEEL WALL MT.

Model BF-5020

Product Details

STAINLESS STEEL WALL-MOUNTED DRINKING FOUNTAINS
BF-5020
STAINLESS STEEL Wall-Mounted Drinking Fountains
Barrier free drinking fountains serve wheelchair users and the general public. WILLIAMS models meet ANSI-117.1-1992, ADA and CMHC guidelines.
BEVEL front single level with push button on front panel. With back plate and vandal resistant bottom plate and mounting plate.
Barrier Free Stainless Steel Wall Mounted Drinking Fountain With Back Plate
These rough-in dimensions may vary 1/2" (13 mm) plus or minus
NOTE:
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm).
Dimensions
BF-5020 9-5/8"H x 19"W with 18-1/2" extension Download File(s)
BF-5020 (PDF) / BF-5020 (RFA)

DRINKING FOUNTAINS – STAINLESS STEEL WALL MT

Model bf-5000

Product Details

STAINLESS STEEL WALL-MOUNTED DRINKING FOUNTAINS
BF-5000
STAINLESS STEEL Wall-Mounted Drinking Fountains
Barrier free drinking fountains serve wheelchair users and the general public. WILLIAMS models meet ANSI-117.1-1992, ADA and CMHC guidelines.

DUAL LEVEL DESIGN Push button control on traditional BEVELED front panels. Attractive, protective stainless steel back plate. Vandal resistant bottom plates and mounting plates are standard.
Option(s):
BFCA-1 Cane touch apron for ADA protruding objects compliance
-RV Reverse height option
NOTE:
These rough-in dimensions may vary 1/2" (13 mm) plus or minus
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm).
Dimensions
BF-5000 14-7/8"H x 35"W with 18-1/2" extension BF-5000-RV 14-7/8"H x 35"W with 18-1/2" extension Download File(s)
BF-5000(PDF) / BF-5000 (RFA)

CHILD HEIGHT DRIKING FOUNTAINS –DUAL

Model 5710

Product Details

CHILD HEIGHT DRIKING FOUNTAINS – DUAL
5710 - 5710-FP
Option(s): Bibb Faucets:
32 V.P. Same as above with key operated shroud
-31 R.C.P. self closing, plain end
-32 R.C.P. compression type, hose end and VB
-32-LK with loose key
-32-SC Self closing, hose end and vacuum breaker
-34 C.P. Frost Proof jug filler
-34-FPS Sanifrost
-35 Recessed compression type, hose end and vacuum breaker
-35-VP Same with key operated cover
-37 Foot Spray
-40 Commemorative plaque
-84 Water filter
-85 Ground Valve box with lid.
-86 Attached metal valve box.
-87 Surface Valve box w/ cover plate
-95 Sand Trap
-96 Sand strainer plate
-SS Stainless steel finish
SMP10 Surface mounting plate
Striking design with clean, sleek lines. Designed to defy the elements, resist vandals and stand up to hard use.
NOTE:
Surface mounted with access panel
All Purpose Child Height Pedestal Drinking Fountain -- Steel pipe. Mounting: Surface
These rough-in dimensions may vary 1/2" (13 mm) plus or minus
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm).
Dimensions
5710 35"H x 10-3/4"W x 30-3/4"L / Surface Mount
5710-FP 35"H x 10-3/4"W x 30-3/4"L / Frost Proof
Download File(s)
5710 (PDF) / 5710(RFA)

CHILD HEIGHT DRIKING FOUNTAINS – ALL PURPOSE

Model 5335

Product Details

Child Height Drinking Fountains - All Purpose
5410 - 5410-TX4
Option(s):
Bibb Faucets:
31 R.C.P. self closing, plain end
32 R.C.P. compression type, hose end and VB
32 V.P. Same as above with key operated shroud
34 C.P. Frost Proof jug filler
76 8.0 gpm chiller with metal housing box
85 Ground Valve box with lid.
86 Attached metal valve box.
87 Surface Valve box w/ cover plate
Striking design with clean, sleek lines. Designed to defy the elements, resist vandals and stand up to hard use.
NOTE:
Surface mounted with access panel
All Purpose Child Height Pedestal Drinking Fountain -- Steel pipe. Mounting: Surface
These rough-in dimensions may vary 1/2" (13 mm) plus or minus
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm).
Dimensions
5410 32-1/4"Hx10-3/4"Wx30-3/4"L / Surface Mount
5410-FP 32-1/4"Hx10-3/4"Wx30-3/4"L / Frost Proof
5410-TX4 34-1/4"Hx10-3/4"Wx30-3/4"L / Surface Mount; Texas(TAS)ages 4-11
5410-TX11 36-1/4"Hx10-3/4"Wx30-3/4"L / Surface Mount; Texas(TAS)ages 11-15
Download File(s)
5410 (PDF) / 5410 (RFA)
5410-TX4 (PDF) / 5410-TX4 (RFA)
5410-TX11 (PDF) / 5410-TX11 (RFA)

CHILD HEIGHT DRINKING FOUNTAINS – CYLINDRICAL

Model 5335

Product Details

CHILD HEIGHT DRINKING FOUNTAINS – CYLINDRICAL
5335 - 5410-FP
Option(s):

Bibb Faucets:
-32 V.P. Same as above with key operated shroud
Bibb Faucets:
32 V.P. Same as above with key operated shroud
-31 R.C.P. self closing, plain end
-32 R.C.P. compression type, hose end and VB
-32-LK with loose key
-32-SC Self closing, hose end and vacuum breaker
-34 C.P. Frost Proof jug filler
-34-FPS Sanifrost
-35 Recessed compression type, hose end and vacuum breaker
-35-VP Same with key operated cover
-37 Foot Spray
-40 Commemorative plaque
-84 Water filter
-85 Ground Valve box with lid.
-86 Attached metal valve box.
-87 Surface Valve box w/ cover plate
-95 Sand Trap
-96 Sand strainer plate
-SS Stainless steel finish
SMP10 Surface mounting plate
Striking design with clean, sleek lines. Designed to defy the elements, resist vandals and stand up to hard use.
NOTE:
Surface mounted with access panel
All Purpose Child Height Pedestal Drinking Fountain -- Steel pipe. Mounting: Surface
These rough-in dimensions may vary 1/2" (13 mm) plus or minus
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm).
Dimensions
5335 24"H x 10-3/4"W x 14-1/2" Dia. base / Surface Mount
5335-FP 24"H x 10-3/4"W x 14-1/2" Dia. base / Frost Proof
Download File(s)
5335-5535 (PDF) / 5335 (RFA) / 5535 (RFA)

DUAL/TRIPLE BARRIER FREE FOUNTAIN & PET FOUNTAIN

Model 5700-90

Product Details

DUAL/TRIPLE BARRIER FREE FOUNTAIN & PET FOUNTAIN
5700-90 - 5925-90
Metal Pedestal Pet Fountains The deep, rich Forest Green color and scratch resistant finish make these fountains an excellent choice for resorts, walking trails and recreational areas where pet are welcome.

Pet Fountains Designed to comply with pet needs and withstand the roughest conditions. Standard features include:
• Pedestals are fabricated from steel pipe.
• Heavy Duty Brushed Aluminum spout is locked to stainless steel receptors and protected with vandal resistant steel guard.
• Recessed self-closing push button valve with outside stream adjustment.
• Slow draining pet fountain receptor with pebble guard drain.
• Woodland Green Powder Coat finish. Optional colors and stainless steel (-SS) are available.
NOTE:
Pedestal Drinking Fountain -- Steel pipe. Mounting: Surface
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm).
Option(s):
Model 5925-90 Triple Barrier Free Fountain & Pet Fountain
Dimensions
5700-90 38-3/4"H x 10-3/4" Dia x 30-3/4"L
5925-90 40"H x 10-3/4" Dia x 50-3/4"L
Download File(s)
5700-90 (PDF), 5925-90 (PDF) / 5700-90 (RFA), 5925-90 (RFA)

BARRIER FREE FOUNTAIN & PET FOUNTAIN

Model 5400-90

Product Details

BARRIER FREE FOUNTAIN & PET FOUNTAIN
5400-90
Metal Pedestal Pet Fountains The deep, rich Forest Green color and scratch resistant finish make these fountains an excellent choice for resorts, walking trails and recreational areas where pet are welcome.

Pet Fountains Designed to comply with pet needs and withstand the roughest conditions. Standard features include:
• Pedestals are fabricated from steel pipe.
• Heavy Duty Brushed Aluminum spout is locked to stainless steel receptors and protected with vandal resistant steel guard.
• Recessed self-closing push button valve(s) with outside stream adjustment.
• Slow draining pet fountain receptor with pebble guard drain.
• Woodland Green Powder Coat finish. Optional colors and stainless steel (-SS) are available.
NOTE:
Pedestal Drinking Fountain -- Steel pipe. Mounting: Surface
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm).
These rough-in dimensions may vary 1/2" (13 mm) plus or minus
Dimensions
5400-90 38-3/4"H x 10-3/4" Dia x 30-3/4"L
Download File(s)
Model 5400-90 (PDF) / 5400-90 (RFA)

STANDARD FOUNTAIN & PET FOUNTAIN

Model 5325-90

Product Details

STANDARD FOUNTAIN & PET FOUNTAIN
5325-90
Metal Pedestal Pet Fountains The deep, rich Forest Green color and scratch resistant finish make these fountains an excellent choice for resorts, walking trails and recreational areas where pet are welcome.

Pet Fountains Designed to comply with pet needs and withstand the roughest conditions. Standard features include:
• Pedestals are fabricated from steel pipe.
• Heavy Duty Brushed Aluminum is locked to stainless steel receptors and protected with vandal resistant steel guard.
• Recessed self-closing push button valve(s) with outside stream adjustment.
• Slow draining pet fountain receptor with pebble guard drain.
• Woodland Green Powder Coat finish. Optional colors and stainless steel (-SS) are available.
NOTE: Pedestal Drinking Fountain -- Steel pipe. Mounting: Surface
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm).
Dimensions
5325-90 38"H x 10-3/4" Dia x 23-3/4"L
Download File(s)
5325-90 (PDF) / 5325-90 (RFA)

METAL PEDESTAL PET FOUNTAINS

Model 9000-66, 9100-66-SS

Product Details

METAL PEDESTAL PET FOUNTAINS
9000-66-SS
Pet Fountains Designed to comply with pet needs and withstand the roughest conditions. Standard features include:
• Pedestals are fabricated from stainless steel pipe.
• Spout is locked to stainless steel receptors and protected with vandal resistant steel guard.
• Recessed self-closing push button valve(s) with outside stream adjustment.
• Slow draining pet fountain receptor with pebble guard drain.
• Finish:stainless steel.
NOTE:
Surface type with mounting plate welded to pedestal.
Pet Fountain -- Steel pipe. --- All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm).
Dimensions
9000-66-SS 32"H x 6-5/8"Dia. x 19-5/8"W / Pet Fountain w/5' hose, Hose Hanger and Self Closing Hose Bibb. Surface mount (shown)
Download File(s)
9000-66-SS (PDF) / 9000-66-SS (RFA)

METAL PEDESTAL PET FOUNTAINS

Model 9000-92

Product Details

Metal pedestal pet fountains
9000-92
Metal Pedestal Pet Fountains The deep, rich Forest Green color and scratch resistant finish make these fountains an excellent choice for resorts, walking trails and recreational areas where pet are welcome.

Pet Fountains Designed to comply with pet needs and withstand the roughest conditions. Standard features include:
• Pedestals are fabricated from steel pipe.
• Spout is locked to stainless steel receptors and protected with vandal resistant steel guard.
• Recessed self-closing push button valve(s) with outside stream adjustment.
• Slow draining pet fountain receptor with pebble guard drain.
• Timer controlled pet spray with recessed vandal resistant spray head (-92).
• Woodland Green Powder Coat finish. Optional colors and stainless steel (-SS) are available.
NOTE: Surface type with mounting plate welded to pedestal.
Pet Fountain -- Steel pipe. All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm).
Dimensions
9000-92 54"H x 6-5/8"Dia. x 19-5/8"W / Pet Fountain w/Spray. Surface mount (shown)
Download File(s)
9000-92 (PDF) / 9000-92 (RFA)

METAL PEDESTAL PET FOUNTAINS

Model 9000, 9000-MWL

Product Details

Metal pedestal pet fountains
9000 - 9000-MWL
Metal Pedestal Pet Fountains. These fountains are an excellent choice for resorts, walking trails and recreational areas where pet are welcome.
Shown above in optional blue color.
Pet Fountains Designed to comply with pet needs and withstand the roughest conditions. Standard features include:
• Pedestals are fabricated from steel pipe.
• Stainless steel spout is locked to stainless steel receptors and protected with vandal resistant steel guard.
• Recessed self-closing push button valve(s) with outside stream adjustment.
• Slow draining pet fountain receptor with pebble guard drain.
• Timer controlled pet spray with recessed vandal resistant spray head (-92).
• Woodland Green Powder Coat finish. Optional colors and stainless steel (-SS) are available.
NOTE:
Surface type with mounting plate welded to pedestal.
Optional blue color shown.
Pet Fountain -- Steel pipe.
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm).
Dimensions
9000 32"H x 6-5/8"Dia. x 19-5/8"W
9000-MWL 28"H x 6-5/8"Dia. x 12-1/2"W
Download File(s)
9000 (PDF) / 9000 (RFA)
9000-MWL (PDF) / 9000-MWL (RFA)

AGGREGATE PET FOUNTAINS

Model RPJ-7000-31, RPJ-7000-34, RPJ-7000-36

Product Details

AGGREGATE PET FOUNTAINS
ADF-3700-C-94 - SPF-3100-94
Pet Fountains Designed to comply with pet needs and withstand the roughest conditions. Standard features include:
• Heavy duty bubbler and brushed aluminum spout are locked to stainless steel receptors(s).
• Recessed self-closing push button valve(s) with outside stream adjustment.
• Slow draining pet fountain receptor with pebble guard drain.
Colors:
Colorama (-C)
Quiet Creek (-Q)
NOTE:
Aggregate Pedestal Drinking Fountain -- .Mounting: Surface
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm).
Dimensions
ADF-3700-94 40"H x 12" x 44-1/2"W / Dual Barrier Free Fountain and Pet Fountain.
ADF-3900-94 / Triple Barrier Free Fountain and Pet Fountain
SPF-3100-94 / Standard Fountain and Pet Fountain
Download File(s)
ADF-3700-94(PDF) / ADF-3700-94 (RFA)
ADF-3900-94(PDF) / ADF-3900-94 (RFA)

AGGREGATE PET FOUNTAINS

Model RPJ-7000-31, RPJ-7000-34, RPJ-7000-36

Product Details

AGGREGATE PET FOUNTAINS
APF-3500-94
Pet Fountains Designed to comply with pet needs and withstand the roughest conditions. Standard features include:
• Heavy duty bubbler and brushed aluminum spout are locked to stainless steel receptors(s).
• Recessed self-closing push button valve(s) with outside stream adjustment.
• Slow draining pet fountain receptor with pebble guard drain.
NOTE: Aggregate Pedestal Drinking Fountain -- .Mounting: Surface
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm).
Dimensions
APF-3500-94 30"W 26"L 35"H / Colorama, light etched, Barrier Free Fountain and Pet Fountain
Download File(s)
APF-3500-94 (PDF) / APF-3500-94 (RFA)

AGGREGATE PET FOUNTAINS DRINKING FOUNTAINS

Model RPJ-7000-31, RPJ-7000-34, RPJ-7000-36

Product Details

AGGREGATE PEDESTAL PET FOUNTAINS
-94 (suffix)
Pet Fountains Designed to comply with pet needs and withstand the roughest conditions. Standard features include:
• Brushed aluminum spout are locked to stainless steel receptors(s) and protected with vandal resistant steel guard(s).
• Recessed self-closing push button valve(s) with outside stream adjustment.
• Slow draining pet fountain receptor with pebble guard drain.
NOTE: Surface mount only.
Aggregate Pedestal Drinking Fountain Mounting: Surface
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm).
Dimensions
94 9"H x 12" x 14-1/2"W / Not Sold Separately
Download File(s)
-94 (PDF) / -94 (RFA)

AGGREGATE PEDESTAL PET FOUNTAINS

Model RPJ-7000-31, RPJ-7000-34, RPJ-7000-36

Product Details

AGGREGATE PEDESTAL PET FOUNTAINS
SPF-3100-94
Pet Fountains Designed to comply with pet needs and withstand the roughest conditions. Standard features include:
• Heavy duty bubbler and brushed aluminum spout are locked to stainless steel receptors(s).
• Recessed self-closing push button valve(s) with outside stream adjustment.
• Slow draining pet fountain receptor with pebble guard drain.
NOTE: Aggregate Pedestal Drinking Fountain -- Mounting: Surface
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm).
Dimensions
SPF-3100-94 36"H x 12"Dia x 26"W / Pet Fountain w/Spray. Surface mount
SPF-3100-C-94 36"H x 12"W x 26"L / Colorama, light etched
Download File(s)
SPF-3100-94 (PDF) / SPF-3100-94 (RFA), SPF-3100 (RFA)

AGGREGRATE PEDESTAL JUG FILLERS

Model RPJ-7000-31, RPJ-7000-34, RPJ-7000-36

Product Details

Outdoor aggregrate pedestal jug fillers
RPJ-7000-31-C - RPJ-7000-36
Aggregrate Pedestal Bibb and Jug Filler. The rich looking aggregrate stone with its scratch resistant finish make this an excellent choice for resorts, playgrounds and recreational areas.
Outdoor Bibb and Jug Fillers are designed to comply to the roughest conditions. Standard features include:
• Vandal resistant chrome plated valve.
• Stainless steel supply fittings connected to code certified reinforced tubing.
• Supply complete with lock shield type screwdriver stop for easy maintenance.
• 1-1/4" PVC waste
• Inline mesh screen strainer
• Vandal resistant access plate(s)
NOTE: Mounting is Surface type with mounting plate welded to pedestal.
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm).
Mounting is Surface type with mounting plate welded to pedestal.
Dimensions
RPJ-7000-C-31 / 32"H x 12" Dia / Colorama, light etched, Lever Handle (shown)
RPJ-7000-C-34 / 32"H x 12" Dia / Push Button - Frost Proof
RPJ-7000-C-36 / 32"H x 12" Dia / Push Botton
Download File(s)
RPJ-7000-31 (PDF) / RPJ-7000-31 (RFA)
RPJ-7000-34-FPS, RPJ-7000-36 (PDF) / RPJ-7000-34 (RFA)

METAL PEDESTAL/OUTDOOR JUG FILLERS

Model 7000-31, 7100-31,

Product Details

METAL PEDESTAL/OUTDOOR JUG FILLERS
7000-31 - 7000-36-MWL
Metal Pedestal Jug Fillers. The deep, rich Sky Blue color and scratch resistant finish make these an excellent choice for resorts, playgrounds and recreational areas.
Outdoor Jug Fillers designed to comply to the roughest conditions. Standard features include:
• Column is fabricated from one piece steel pipe.
• All exposed parts are recessed in welded steel plates.
• Heavy duty, vandal resistant spout
• Self closing.
• Vandal resistant access plates for easy maintenance.
• Sky Blue polyester powder coat finish. Optional colors and stainless steel (-SS) available.
• Standard frost proof value system available for all year use.(-34)
• Sanifrost Valve System eliminates the possibility of cross contamination (-34FPS)
NOTE: 2 types of mounting:
1. 14" bury in ground with welded supports to be poured in 4" concrete slab.
2. Surface type with mounting plate welded to pedestal.
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm).
Mounting is Surface type with mounting plate welded to pedestal.
Dimensions
7000-31 32"H x 4-1/2"Dia / Left(shown) with surface mount
7100-31 46"H x4-1/2" Dia / Right(shown) with in ground bury
7000-34 32"H x 4-1/2"Dia / with surface mount, Frost Proof
7100-36 46"H x 4-1/2"Dia / with in ground bury, Frost Proof
7000-36 32"H x 6-5/8"Dia / Right (shown) with surface mount
7100-36 46"H x 6-5/8"Dia / Left (shown) with in ground bury
7000-36-MWL 8"H x 8"W / Wall mounted Jug Filler
Download File(s)
7000-31 & 7100-31 (PDF) / 7000-31 (RFA), 7100-31 (RFA)
7000-32-VP & 7100-32-VP (PDF) / 7000-32-VP (RFA), 7100-32-VP (RFA)
7000-34, 7000-34-FPS, 7100-34 & 7100-34-FPS (PDF) / 7000-34 (RFA), 7100-34 (RFA)
7000-36 & 7100-36 (PDF) / 7000-36 (RFA), 7100-36 (RFA)
7000-36-MWL (PDF) / 7000-36-MWL (RFA)

OUTDOOR PEDESTAL HOSE BIBB

Model 7000-32-VP & 7100-32-VP

Product Details

OUTDOOR PEDESTAL HOSE BIBB
7000-32-VP - 7100-32-VP
Metal Pedestal Hose Bibbs. The deep, rich Sky Blue color and scratch resistant finish make these an excellent choice for resorts, playgrounds and recreational areas.
Outdoor Hose Bibbs designed to comply to the roughest conditions. Standard features include:
• Column is fabricated from one piece steel pipe.
• All exposed parts are recessed in welded steel plates.
• Heavy duty, wheel handle spout with vacuum breaker.
• Key operated lock box.
• Vandal resistant access plates for easy maintenance.
• Sky Blue polyester powder coat finish. Optional colors and stainless steel (-SS) available.
NOTE:
2 types of mounting:
1. 14" bury in ground with welded supports to be poured in 4" concrete slab.
2. Surface type with mounting plate welded to pedestal.
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm).
Mounting is Surface type with mounting plate welded to pedestal.
Dimensions
7000-32-VP 32"H x 6-5/8"Dia / with surface mount
7100-32-VP 46"H x 6-5/8"Dia
Download File(s)
7000-32-VP, 7100-32-VP (PDF)
7000-32-VP & 7100-32-VP Spec Sheets
7000-32-VP(RFA)/ 7000-32-VP(CAD)

OUTDOOR PEDESTAL HOSE BIBBS

Model 7000-32 & 7100-32

Product Details

OUTDOOR PEDESTAL HOSE BIBBS
7000-32 - 7100-32
Metal Pedestal Hose Bibbs. The deep, rich Sky Blue color and scratch resistant finish make these an excellent choice for resorts, playgrounds and recreational areas. Outdoor Hose Bibbs designed to comply to the roughest conditions. Standard features include:
• Column is fabricated from one piece steel pipe.
• All exposed parts are recessed in welded steel plates.
• Heavy duty, vandal resistant spout with vacuum breaker.
• Vandal resistant access plates for easy maintenance.
• Sky Blue polyester powder coat finish. Optional colors and stainless steel (-SS) available.

NOTE:
2 types of mounting:
1. 14" bury in ground with welded supports to be poured in 4" concrete slab.
2. Surface type with mounting plate welded to pedestal.
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm).
Mounting is Surface type with mounting plate welded to pedestal.

Dimensions
7000-32 32"H x 4-1/2"Dia (Shown) with surface mount
7100-32 46"H x 4-1/2"Dia

Download File(s)
7000-32, 7100-32 (PDF)
7000-35-VP & 7100-35-VP Spec Sheets
7000-32-VP(RFA)/ 7000-32-VP(CAD)

AGGREGATE SHOWER TOWER & FOOT WASH

Model RPS-6200

Product Details

AGGREGATE SHOWER TOWER & FOOT WASH
RPS-6200 - RPS-6850
The Shower and Foot Wash are Designed to comply to the roughest conditions. Standard features include:
• Heavy duty, vandal resistant spray head(s)
• Push button valve, centered on vandal resistant stainless steel access plate.
• Adjustable flow regulation
• Timer controlled, low maintenance water control valve(s)
• Supply complete with 1/2" IPS lock shield screwdriver stop
• 1-1/4" IPS waste.
NOTE: All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm).
Mounting is Surface type with mounting plate welded to pedestal.
Dimensions
RPS-6200 80"H x 6-5/8"Dia - Body and Foot Wash (shown)
RPS-6400 80"H x 6-5/8"Dia - Dual Body and Foot Wash
RPS-6800 80"H x 6-5/8"Dia - Wheelchair accessible Shower and Foot Wash
RPS-6850 80"H x 6-5/8"Dia - Triple Shower
Download File(s)
RPS-6200-6400 (PDF) / RPS-6400 (RFA)
RPS-6800 (PDF) / RPS-6800 (RFA)
RPS-6850 (PDF) / RPS-6850 (RFA)

OUTDOOR SHOWERS

Model 6825 & 6925

Product Details

OUTDOOR SHOWERS
6825 - 6935
Outdoor showers Designed to comply to the roughest conditions. Standard features include:
Grab Bars (2)
Column is fabricated from one piece steel pipe.
All exposed parts are recessed in welded steel plates.
Three (3) Heavy duty, vandal resistant spray heads.
3 Timer controlled, low maintenance water control valves.
Vandal resistant access plates for easy maintenance.
Sky Blue Polyest Powder finish. Optional colors and stainless steel (-SS) finish available.
NOTE: Surface type with mounting plate welded to pedestal.
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm).
All Purpose Wheelchair accessible Shower and Foot Shower
Dimensions
All purpose wheelchair accessible shower and foot shower:
6825 80"H x 6-5/8"Dia - with surface mount
All purpose wheelchair accessible shower and foot shower with 3 heads on the same side:
6825 80"H x 6-5/8"Dia - with surface mount
Download File(s)
6825, 6925 (PDF) / 6825 (RFA)
6835 (PDF) / 6835 (RFA)

OUTDOOR SHOWERS

Model 6800 & 6900

Product Details

OUTDOOR SHOWERS
6800 - 6915
ALL PURPOSE wheelchair accessible shower and foot shower. Outdoor showers Designed to comply to the roughest conditions. Standard features include:
Column is fabricated from one piece steel pipe.
All exposed parts are recessed in welded steel plates.
3 Heavy duty, vandal resistant spray head(s).
3 Timer controlled, low maintenance water control valve(s).
Vandal resistant access plates for easy maintenance.
Sky Blue Polyest Powder finish. Optional colors and stainless steel (-SS) finish available.
NOTE: Surface type with mounting plate welded to pedestal.
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm).
All Purpose Wheelchair accessible Shower and Foot Shower
Dimensions
All purpose wheelchair accessible shower and foot shower with 3 heads on the same side:
6800 80"H x 6-5/8"Dia - with surface mount
All purpose wheelchair accessible shower and foot shower:
6800 80"H x 6-5/8"Dia - with surface mount
Download File(s)
Model 6800 & 6900 (PDF) / 6800 (RFA)
Model 6815 & 6915 (PDF) / 6815 (RFA)

OUTDOOR SHOWERS

Model 6850 & 6950

Product Details

OUTDOOR SHOWERS
6875 - 6975
Quad Shower, Outdoor showers designed to comply to the roughest conditions.
Standard features include:
Column is fabricated from one piece steel pipe.
All exposed parts are recessed in welded steel plates.
Four (4) heavy duty, vandal resistant spray head(s).
Four (4) timer controlled, low maintenance water control valve(s).
Vandal resistant access plates for easy maintenance.
Sky Blue Powder Coat finish. Optional colors and stainless steel (-SS) finish available.
NOTE:
Surface type with mounting plate welded to pedestal.
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm).
Dimensions
6875 84"H x 6-5/8"Dia - with surface mount
Download File(s)
6875 (PDF) / 6875 (RFA),

OUTDOOR SHOWERS

Model 6850 & 6950

Product Details

OUTDOOR SHOWERS
6850 - 6950
Triple Shower. Outdoor showers designed to comply to the roughest conditions.
Standard features include:
• Column is fabricated from one piece steel pipe.
• All exposed parts are recessed in welded steel plates.
• Heavy duty, vandal resistant spray head(s) 3.
• Timer controlled, low maintenance water control valve(s) 3.
• Vandal resistant access plates for easy maintenance.
• Sky Blue Polyest Powder finish. Optional colors and stainless steel (-SS) finish available.
Triple Shower: 6850 with surface mount (shown) 6950 with in ground bury
NOTE:
Surface type with mounting plate welded to pedestal.
Pedestal Outdoor Dual Shower & Dual Foot Spray-- Steel pipe
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm).
Dimensions
6850 80"H x 6-5/8"Dia.
Download File(s)
6850 (PDF) / 6850 (RFA),

OUTDOOR SHOWER

Model 6400 & 6500

Product Details

OUTDOOR SHOWER
6400 - 6500
Dual Body and Foot Fountains. Outdoor showers Designed to comply to the roughest conditions. Standard features include:
Column is fabricated from one piece steel pipe.
All exposed parts are recessed in welded steel plates.
Heavy duty, vandal resistant spray head(s) 4.
Timer controlled, low maintenance water control valve(s) 4.
Vandal resistant access plates for easy maintenance.
Sky Blue Polyest Powder finish. Optional colors and stainless steel (-SS) finish available.
NOTE:
Surface type with mounting plate welded to pedestal.
Pedestal Outdoor Dual Shower & Dual Foot Spray-- Steel pipe
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm).
Dimensions
6400 80"H x 6-5/8"Dia.
Download File(s)
6400 (PDF) / 6400 (RFA)

DRINKING FOUNTAIN WITH SHOWER & FOOT SHOWER

Model 6650

Product Details

SAND SMART SERIES
DRINKING FOUNTAIN WITH SHOWER & FOOT SHOWER
6650
An excellent choice where sand is prevalent at outdoor volley ball court & water front areas. Standard features include:
Model 6600 Drinking Fountain with Shower & Foot Shower standard features:

• Recessed self-closing push button valve with outside stream adjustment.
• Chrome plated bubbler with steel bubbler guard.
• ADA compliant heavy sheet steel arm projecting from pedestal.
• Large capacity powder coated trench type drain with removable internal sediment bucket.
• Drains to an external drain by others.
• Welded bottom plate. Special tool supplied for maintenance.
• Sky blue Polyest Powder finish. Optional colors and stainless steel finish available.
Model 6650 Surface mount (shown).
NOTE:
Pedestal Outdoor Shower, Foot Spray & Drinking Fountain -- Steel pipe.
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm).
Dimensions
6650 80"H x 26-5/8"W x 6-5/8"Dia. Col.
Download File(s)
6650 (PDF) / 6650 (RFA)

OUTDOOR SHOWERS & DRINKING FOUNTAIN

Model 6600 & 6700

Product Details

OUTDOOR SHOWERS & DRINKING FOUNTAIN
6600, 6630
Outdoor Foot and body showers with drinking fountains. Standard features include:
Recessed self-closing push button valve with outside stream adjustment. Timer controlled vandal resistance shower heads.
Chrome plated bubbler locked to stainless steel bowl.
Vandal resistant drain and steel bubbler guard.
ADA compliant heavy sheet steel arm projecting from pedestal.
Welded bottom plate. Special tool supplied for maintenance.
Sky blue Polyest Powder finish. Optional colors and stainless steel finish (-SS) available.
Model 6600 Surface mount (shown).
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm). Model 6600 Surface mount single.
Model 6630 Surface mount dual

Options
- 96 Sand Strainer plate
- SS Stainer steel pipe
- SMP-6 Surface mounting plate
*- RV (Reverse heights; Higher unit on left on model 6630 dual)
Dimensions
6630 and 6600 80"H x 26-5/8"W x 6-5/8"Dia. Col.
Download File(s)
6600 (PDF) / 6600 (RFA) / 6600 Spec (PDF)
6630 (PDF) / 6630 (RFA)

OUTDOOR SHOWERS

Model 6200 & 6300

Product Details

OUTDOOR SHOWERS
6200 - 6300
Metal Pedestal Outdoor Body and Foot Showers. The deep, rich Sky Blue color and scratch resistant finish make these showers an excellent choice for resorts, playgrounds and recreational areas.

Outdoor Showers designed to comply to the roughest conditions. Standard features include:
Column is fabricated from one piece steel pipe.
All exposed parts are recessed in welded steel plates.
Heavy duty, vandal resistant spray heads (2).
Timer controlled, low maintenance water control valves (2).
Vandal resistant access plates for easy maintenance.
Sky Blue Polyest Powder finish. Optional colors and stainless steel finish available.
Shower & Foot Shower: 6200 with surface mount (shown)
Pedestal Outdoor Shower & Foot Spray -- Steel pipe
NOTE:
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm).
Dimensions
6200 80"H x 6-5/8"Dia.
Download File(s)
6200, 6300 (PDF) / 6200 (RFA)

OUTDOOR FOOT SHOWERS

Model 6000 & 6100

Product Details

OUTDOOR FOOT SHOWERS
6000
Metal Pedestal Outdoor Foot Showers. The deep, rich Sky Blue color and scratch resistant finish make these showers an excellent choice for resorts, playgrounds and recreational areas.

Outdoor Foot Showers designed to comply to the roughest conditions. Standard features include:
Column is fabricated from one piece steel pipe.
All exposed parts are recessed in welded steel plates.
Heavy duty, vandal resistant spray head.
Timer controlled, low maintenance water control valve.
Vandal resistant access plates for easy maintenance.
Sky Blue Polyest Powder finish. Optional colors and stainless steel finish available.
Foot Shower: 6000 with surface mount (shown)
NOTE:
Surface type with mounting plate welded to pedestal.
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm)
Dimensions
6000 32"H x 6-5/8"Dia./ 6000 with surface mount (shown)
6000-MWL 8"H x 8"W / Wall mounted Foot Shower
Download File(s)
6000 (PDF) / 6000 (RFA)
6000-MWL (PDF) / 6000_MWL (RFA)

COMFORT SPRAY STATIONS

6425

Product Details

COMFORT SPRAY STATIONS
6425
Model 6425 This Comfort Spray Station was designed for maximum cool down after rigorous outdoor activity. Standard features include:
• Column is made from steel pipe.
• All exposed parts are recessed in welded steel plates.
• Ten (10)1.26 gph heavy duty vandal resistant mist heads.
• Timer controlled, low maintenance self closing water control valve.
• Vandal resistant access plates for easy maintenance.
• Sky Blue Powder Coat Finish. Optional colors and stainless steel finish available.
• Surface type mount only with mounting plate welded to pedestal.
Options:
-SS Stainless Steel.
-SMP-6 Surface mounting plate
NOTE: Metering Valve is Standard.
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm).
The Comfort Spray Station is designed for maximum cool down after rigorous outdoor activity.
Dimensions
88"H x 6-5/8" Dia Download File(s)
6425 (PDF) / 6425 (RFA)

SPRAY STATION & DRINKING FOUNTAIN

6475-ss

Product Details

SPRAY STATION & DRINKING FOUNTAIN
6475 - 6495
Model 6475& 6495 standard fountain features:

• Heavy duty, vandal resistant mist heads.(4)
• Timer controlled mist head valves.
• Sky blue powder cost finish.
• Optional colons ans stainless steel (-SS) finish available.
• Recessed self-closing push button fountain valve with outside stream adjustment.
• Chrome plated bubbler locked to stainless steel bowl.
• Vandal resistant drain and steel bubbler guard.
• ADA compliant heavy sheet steel arm projecting from pedestal.
• Welded bottom plate. Special tool supplied for maintenance.

Model 6475: Surface mount, Single, Model 6495: Surface Mount, Dual*
Options:
-96 Sand strainer plate.
-SS Stainless Steel (shown).
-SMP-6 Surface mounting plate.
*Option: - RV (reverse heights; highter unit on left on model 6495 dual).

Surface type with mounting plate welded to pedestal.
NOTE:
Metering Valve is Standard. All Purpose Wheelchair accessible Mister Shower. All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm).
Dimensions
6475 84"H x 26-5/8"W x 6-5/8"Dia. Col.
6495 84"H x 26-5/8"W x 6-5/8"Dia.Col.
Download File(s)
6495 (PDF) / 6495 (RFA)
6475 (PDF) / 6475 (RFA)

COMFORT SPRAY STATIONS

6450

Product Details

COMFORT SPRAY STATIONS
6450
Model 6450 The Comfort Spray Station is designed to comply to the roughest conditions. Standard features include:

• Column is fabricated from one piece steel pipe.
• All exposed parts are recessed in welded steel plates.
• Heavy duty, vandal resistant mist heads (8).
• Timer controlled, low maintenance water control valve.
• Vandal resistant access plates for easy maintenance.
• Sky Blue Powder Coat finish. Optional colors and stainless steel finish available.
Options:
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm).

Mounting:
Surface type with mounting plate welded to pedestal.
NOTE:
SWP-6 surface mounting plate.
-SS Stainless Steel.
Dimensions
6450 84"H x 6-5/8"Dia
Download File(s)
6450 (PDF) / 6450 (RFA) ,

WATER BOTTLE FILLER STATIONS

7925

Product Details

WATER BOTTLE FILLER STATIONS - HI-LOW DRINKING FOUNTAINS
7925 - Triple Pedestal
Standard features include:
• Woodland green Polyester Powder Coat finish (optional colors are available).
• Brushed aluminum gravity type filler spout
• Vandal resistant integral chrome plated brass drain
• Replaceable in line water filter
• Push button valve
Designed to be a convenient station to refill reusable water bottles with filtered water.
Options:
(Add suffix)
-90 Pet Fountain attached
SMP-10 Surface mounting plate
7300 Water Bottle Filler Station - Wall Mounted
7325 Water Bottle Filler Station - Single Pedestal
7700 Water Bottle Filler Station - Dual Pedestal
NOTE:,
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm).
Dimensions
7925 59”H x 10-3/4”W x 50-3/4”L Download File(s)
7925 (PDF) / 7925 (RFA)

WATER BOTTLE FILLER STATIONS

7700

Product Details

WATER BOTTLE FILLER STATIONS
7700
Standard features include:
• Woodland green Polyester Powder Coat finish (optional colors are available).
• Brushed aluminum gravity type filler spout
• Vandal resistant integral chrome plated brass drain
• Replaceable in line water filter
• Push button valve
Options:
(Add suffix)
-90 Pet Fountain attached
SMP-10 Surface mounting plate
NOTE: All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm). Dimensions
7700 59”H x 10-3/4”W x 30-3/4”L Download File(s)
7700 (PDF) / 7700 (RFA)

WATER BOTTLE FILLER STATIONS

7325

Product Details

WATER BOTTLE FILLER STATIONS - SINGLE PEDESTAL
7325
Standard features include:
• Woodland green Polyester Powder Coat finish (optional colors are available).
• Brushed aluminum gravity type filler spout
• Vandal resistant integral chrome plated brass drain
• Replaceable in line water filter
• Push button valve
Options:
SMP-6 Surface mounting plate.
NOTE: All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm). Dimensions
7325 59”H x 6-5/8”Dia Download File(s)
7325 (PDF) / 7325 (RFA)

WATER BOTTLE FILLER STATIONS

7300

Product Details

WATER BOTTLE FILLER STATIONS - WALL MOUNTED
7300
Options: FLWMP-1 Support carrier with mounting plate (recommended). Standard features include:
• Woodland green Polyester Powder Coat finish (optional colors are available).
• Brushed aluminum gravity type filler spout
• Vandal resistant integral chrome plated brass drain
• Replaceable in line water filter
• Push button valve
NOTE: All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm). Dimensions
7300 27”H x 20”L Download File(s)
7300 (PDF) / 7300 (RFA)
FLWMP-1 (PDF)

CLINIC SINK

1028

Product Details

CLINIC SINK
1028
Clinic Sink Base A terrazzo pedestal designed to be used with a vitreous china clinic service sink.
This universal design fits the rough-ins of all major fixture manufacturers, and was created to raise the height of the service sink base to avoid awkward bending.
NOTE: All dimensions subject to manufacturing variance of plus or minus 1/4”. Download File(s)
1028 (PDF) / 1028 (RFA)

SERVICEPTOR RECTANGULAR

SB-302

Product Details

SERVICEPTOR RECTANGULAR
SB-300(L, R) - SB-250 Series
The most complete line of terrazzo Serviceptors for corner, recessed, pier or island installations, we offer models in a choice of 4 sizes. All sinks are available with plain shoulders or integrally cast 20 gauge continuous stainless steel cap.

• Terrazzo composed of pearl gray marble chips cast in white Portland cement which produces a compressive strength of 3000 PSI seven days after casting; then ground smooth, grouted and sealed to resist stains and moisture.
• Brass drain body is cast integral and provides for a caulked connection of not less that 1" deep to a 3" pipe. Drain is centered on all models and comes with a flat stainless steel strainer and screws.
• Installs on the finished floor.

Shoulders shall not be less than 9-3/4" high inside measurement, and not less than 1-1/4" wide. Drain shall be cast brass cast integral with removable stainless steel strainer, and shall provide for a casket or a caulked lead connection not less than 1" deep to a 3" pipe. Terrazzo receptor is composed of pearl gray marble chips and white Portland cement, and is ground smooth, grouted, and sealed to resist stains. Stainless steel caps are four pieces of 20 gauge stainless steel and cast integral.
NOTE: All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm).
*Flange is across back and on left side on model numbers ending in “L”.
*Flange is across back and on right side on model numbers ending in “R”.
*Tiling flanges are optional, made of stainless steel, and extend 1" above the shoulder on 1, 2, or 3 sides, as required.
Dimensions
(With One-Piece Stainless Steel Cap) The last digit of the model number indicates Numbers of Flange(s)(ie: 1, 2 & 3).
SB-300, SB-301, SB-302L, SB-302R, SB-303- 36x24x12"

(With Plain Shoulders) The last digit of the model number indicates Numbers of Flange(s)(ie: 1, 2 & 3).
SB-200, SB-201, SB-202L, SB-202R, SB-203 - 36x24x12"

With Four Stainless Steel Caps
SB-250 - 36x24x12"
Download File(s)
Serviceptors Rectangular (PDF) / SB-200 (RFA), SB-300 (RFA),
Serviceptors Four Stainless Steel Caps (PDF) / SB-250 (RFA), SB-450-850 (RFA)
Serviceptors specifications (PDF) / SB-200 (RFA), SB-201-301 (RFA), SB-202-R-302-R (RFA), SB-202-L-302-L (RFA), SB-203-303 (RFA), SB-300 (RFA), SB-400 (RFA), SB-500 (RFA), SB-600 (RFA), SB-700 (RFA), SB-800 (RFA), SB-900 (RFA)

SERVICEPTOR SQUARE

SB-900

Product Details

SERVICEPTOR SQUARE
SB-200-SB-900 Square Series Mop Basins
The most complete line of terrazzo Serviceptors for corner, recessed, pier or island installations, we offer models in a choice of 4 sizes. All sinks are available with plain shoulders or integrally cast 20 gauge continuous stainless steel cap.

• Terrazzo composed of pearl gray marble chips cast in white Portland cement which produces a compressive strength of 3000 PSI seven days after casting; then ground smooth, grouted and sealed to resist stains and moisture.
• Brass drain body is cast integral and provides for a caulked connection of not less that 1" deep to a 3" pipe. Drain is centered on all models and comes with a flat stainless steel strainer and screws.
• Installs on the finished floor.

Shoulders shall not be less than 9-3/4" high inside measurement, and not less than 1-1/4" wide. Drain shall be cast brass cast integral with removable stainless steel strainer, and shall provide for a gasket or caulked lead connection not less than 1" deep to a 3" pipe. Terrazzo receptor is composed of pearl gray marble chips and white Portland cement, and is ground smooth, grouted, and sealed to resist stains. Stainless steel caps are four pieces of 20 gauge stainless steel and cast integral.
NOTE: All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm).
*Tiling flanges are optional, made of stainless steel, and extend 1" above the shoulder on 1, 2, or 3 sides, as required.
Dimensions
(With One-Piece Stainless Steel Cap) The last digit of the model number indicates Numbers of Flange(s)(ie: 1, 2 & 3).
SB-900, SB-901, SB-902, SB-903 - 24x24x12"
SB-700, SB-701, SB-702, SB-703 - 32x32x12"
SB-500, SB-501, SB-502, SB-503 - 36x36x12"

(With Plain Shoulders) The last digit of the model number indicates Numbers of Flange(s)(ie: 1, 2 & 3).
SB-800, SB-801, SB-802, SB-803 - 24x24x12"
SB-600, SB-601, SB-602, SB-603 - 32x32x12"
SB-500, SB-501, SB-502, SB-503 - 36x36x12"
SB-400, SB-401, SB-402, SB-403 - 36x36x12"

With Four Stainless Steel Caps
SB-850 - 24x24x12"
SB-650, SB-450 - 36x24x12"
Download File(s)
SB-200, SB-300, SB-400, SB-500, SB-600, SB-700, SB-800, SB-900 Series Serviceptors (PDF)
SB-200 (RFA), SB-300 (RFA) SB-400 (RFA), SB-500 (RFA), SB-600 (RFA), SB-700 (RFA), SB-800 (RFA), SB-900 (RFA)

Serviceptors Four Stainless Steel Caps (PDF)
SB-250 (RFA), SB-450-850 (RFA)


MTB RECTANGULAR

MTB-3624

Product Details

MTB RECTANGULAR
MTB-3624
The MTB was designed to fill the need for a mop sink in a lower price range, but with good splash protection. It is normally not equipped with tiling flanges, so sealant should be applied where basin meets the wall. Flanges are available upon request. Each exposed side can be equipped with vinyl or aluminum bumper guards, OR cast integral stainless steel caps. Please see the accessories section for additional information on the bumper guards. We produce the MTB in two sizes, both of which have 3" centered brass drains cast integral and a stainless steel dome strainer and screws. NOTE: All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm). 10" type. Dimensions
MTB-3624 - 36x24x10"
Download File(s)
MTB-3624 (PDF) / MTB-3624 (RFA)

MTB SQUARE

MTB-2424

Product Details

MTB SQUARE
MTB-2424
The MTB was designed to fill the need for a mop sink in a lower price range, but with good splash protection. It is normally not equipped with tiling flanges, so sealant should be applied where basin meets the wall. Flanges are available upon request. Each exposed side can be equipped with vinyl or aluminum bumper guards, OR cast integral stainless steel caps. Please see the accessories section for additional information on the bumper guards. We produce the MTB in two sizes, both of which have 3" centered brass drains cast integral and a stainless steel dome strainer and screws. NOTE:
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm). 10" type.
Dimensions
MTB-2424 - 24x24x10"
Download File(s)
MTB-2424 Square(PDF) / MTB-2424 (RFA)

ELFIN RECTANGULAR

EBR-66

Product Details

ELFIN
EBR-66 - EBR-74
The ELFIN is a rugged economical unit with plain curbs on all sides. It is installed quickly in one single operation on the finished floor. All models except the corner unit come with a 3" centered brass drain with removable flat stainless steel strainer and screws. The drain for the corner model is located 12" off the back walls to help avoid spills. This unit can be furnished with aluminum or vinyl bumper guards, OR cast integral stainless steel caps, on the exposed sides of the basin. Please see the accessories section for additional information on the bumper guards. The ELFIN is available in four square models, one rectangular, and one corner model.
  NOTE: All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm). Dimensions EBR-66 - 36x24x6"
EBR-74 - 36x32x6"
Download File(s)
EBR 66, EBR 74 (PDF) / EBR-66-74 (RFA)
EBR 66-74 (PDF) / EBR-66-74 (RFA)

ELFIN SQUARE

EB-54

Product Details

ELFIN
EB-54 - EB-78
The ELFIN is a rugged economical unit with plain curbs on all sides. It is installed quickly in one single operation on the finished floor. All models except the corner unit come with a 3" centered brass drain with removable flat stainless steel strainer and screws. The drain for the corner model is located 12" off the back walls to help avoid spills. This unit can be furnished with aluminum or vinyl bumper guards, OR cast integral stainless steel caps, on the exposed sides of the basin. Please see the accessories section for additional information on the bumper guards.

The ELFIN is available in four square models, one rectangular, and one corner model.
NOTE: All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm). Dimensions
EB-54 - 24x24x6"
EB-66 - 30x30x6"
EB-70 - 32x32x6"
EB-78 - 36x36x6"
Download File(s)
EB-54,66,70,78 (PDF) / EB-54-78 (RFA)
EB-54,66,70,78 (PDF) / EB-54-78 (RFA)

ELFIN NEO-CORNER

EBC-150

Product Details

ELFIN
EBC-150
The ELFIN is a rugged economical unit with plain curbs on all sides. It is installed quickly in one single operation on the finished floor. All models except the corner unit come with a 3" centered brass drain with removable flat stainless steel strainer and screws. The drain for the corner model is located 12" off the back walls to help avoid spills. This unit can be furnished with aluminum or vinyl bumper guards, OR cast integral stainless steel caps, on the exposed sides of the basin. Please see the accessories section for additional information on the bumper guards.

The ELFIN is available in four square models, one rectangular, and one corner model.
NOTE: All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm). Dimensions
EBC-150 - 36x36x6"
Download File(s)
EBC-150 (PDF) / EBC-150 (RFA)

CRESCENT

CRS-2200

Product Details

CRESCENT
CRS-2200 - CRS-2202
The CRESCENT CRS-2200 was designed around the two features most sought after by today's style and function conscious specifications.

SPACE EFFICIENT - radial designed corner model that occupies minimum floor space.

MAXIMUM UTILITY - front drop with stainless steel cap that facilitates dumping of power equipment and reduces lifting of conventional equipment.
NOTE: All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm). 12" radial type. Dimensions
CRESCENT - 6" front drop without Stainless Steel Cap
CRS-2210 - 28x28x12"

CRESCENT - 6" front drop with Stainless Steel Cap
CRS-2200 - 28x28x12"
CRS-2202* - 28x28x12"
*With two tiling flanges
Download File(s)
CRS-2200, CRS-2210, CRS-2202 (PDF) / CRS-2200 (RFA), CRS-2210 (RFA)

CORNARO

SBC-1500

Product Details

CORNARO
SBC-1500 - SBC-1450
The CORNARO with its unique style adds a modern look to any of today's architectural concepts.

All the features found in our Serviceptor line are found in this model. The one-piece construction insures water tightness, and its modern style occupies less floor space. It is composed of gray marble chips and Portland cement, ground smooth, grouted, and sealed to resist stains and moisture.

The stainless steel cap is of one-piece 20-gauge stainless steel cast integral on all sides. The CORNARO with the stainless steel cap is Series SBC-1500 . . . without the stainless steel cap, SBC-1400.

The CORNARO can also be furnished with tiling flanges on two sides. It is then identified as SBC-1502, or SBC-1402.
NOTE: 12" corner type no drop front. Dimensions
CORNARO - with Stainless Steel Cap
SBC-1500 - 24x24x12"
SBC-1502* - 24x24x12"
SBC-1525 - 36x36x12"
SBC-1550 - 36x36x12"
*With two tiling flanges

CORNARO - without Cap
SBC-1400 - 24x24x12"
SBC-1402* - 24x24x12"
HSBC-1425 - 32x32x12"
SBC-1450 - 36x36x12"
Download File(s)
SBC-1400-1550 (PDF) / SBC-1400-1450 (RFA), SBC-1500-1550 (RFA)

THE CORLOW

SBC-1700

Product Details

THE CORLOW
SBC-1700 - SBC-1750
These units were developed when the need arose to more efficiently drain power-driven floor maintenance equipment. Their drop front styling allows the janitor to automatically dump waste water.

Made from the same high quality materials as all other Stern-Williams products, the CORLOW and HILOW series have the stainless steel cap cast into the threshold to protect the area of greatest use. In addition, the HILOW series is also available with caps on all horizontal shoulders. Tiling flange may be added to customize any sink to meet your specifications.
NOTE: 12" corner type w/drop front.
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm)
Dimensions
CORLOW - S.S. Cap on threshold
SBC-1700 - 24x24x12"
SBC-1725 - 32x32x12"
SBC-1750 - 36x36x12"
Download File(s)
SBC-1700-1750 (PDF) / SBC-1700-1750 (RFA)

PENTELIC ROLL-IN TYPE (ADA)

pentelic-3430

Product Details

PENTELIC ROLL-IN TYPE (ADA)
WDA-3430 - WDA-3460
Terrazzo's natural non-slip surface provides better footing and increased safety. Wheelchair shower floors are flanged on three sides for a water tight joint between the wall and shower floor. These shower floors must be set on a level grout or mortar bed.

The intent is to allow a wheelchair patient to remain seated in the wheelchair and roll into the shower. This model must be recessed into the building floor to allow unobstructed wheelchair entry.
NOTE: All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm). The above models conform to 2010 ADA standards for accessable design and A.117.1–2009.
Inside Deminsions: (A) 36x36" inside, (B) 60x30" inside, (C) 60x36" inside
Dimensions
WDA-3405 - 40x38" (A)
WDA-3430 - 64x32" (B)
WDA-3460 - 64x38" (C)
Download File(s)
WDA-3405-3460 (PDF) / WDA-3400-3460 (RFA)
WDA-3405-3630 (PDF) / WDA-3400-3460 (RFA)

PENTELIC RAMP TYPE (ADA)

WDA-3605

Product Details

WDA-3605, WDA-3630, WDA-3660
WDA-3605 - WDA-3660
Pentelic Roll-In Type Shower Floor with Ramp. Terrazzo's natural non-slip surface provides better footing and increased safety. Wheelchair shower floors are flanged on three sides for a water tight joint between the wall and shower floor. These shower floors must be set on a level grout or mortar bed.

The intent is to allow a wheelchair patient to lift one’s self onto a transfer seat with the assistance of a grab bar. This transfer type shower floor has an integral cast 12” ramp with a running slope of 1:12. A stainless steel cap covers and protects the leading 6” of the ramp. A floor drain by others at the entrance to the sloped threshold and a collapsible water dam (Option: -RDM) are recommended for added protection.
NOTE: All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm). The above models conform to 2010 ADA standards for accessable design and A.117.1–2009.
Inside Deminsions: (A) 36x36" inside, (B) 60x30" inside, (C) 60x36" inside
Dimensions
WDA-3605 - 40x38" (A)
WDA-3630 - 64x32" (B)
WDA-3660 - 64x38" (C)
Download File(s)
WDA-3605, WDA-3630, WDA-3660 (PDF) / WDA-3600-3660 (RFA)

TRIESTE BACK OUTLET

54-trieste-BO

Product Details

52-BO, 54-BO
52-BO - 54-BO
When structural consideration demands, this floor allows drain to be put directly into pipe chase. Provides freedom of design. 2" F.I.P.S. brass drain is centered on the back dimension, and has a removable chrome-plated brass strainer.Also available in other Trieste sizes as well as in Parian, Pentelic, Serpentine and Sussex series. NOTE: All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm). Dimensions For off-the-floor rough in, 1 Threshold, 3 Flange
52-BO - 32x32"
54-BO - 36x36"
Download File(s)
BO-52,54 (PDF) / BO-52,54 (RFA)

TRIESTE RECTANGULAR

88 Trieste RECTANGULAR

Product Details

88 Trieste Rectangular
82 - 94.5
WIDE INTEGRAL THRESHOLD. Easily accommodates glass or plastic doors.
Our most popular series. Three sides are flanged for built-up construction. Model with threshold on long dimension is available in 12 sizes. Model with threshold on short dimension is designed especially for retrofit situations. All floors have a 2" centered brass drain with removable flat snap-in stainless steel strainer.
NOTE: All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm). Dimensions Threshold on long dimension.
82 - 36x32"
83 - 42x32"
83.2 - 42x34"
83.5 - 42x36"
84 - 48x32"
84.2 - 48x34"
84.5 - 48x36"
86 - 54x32"
88 - 60x32"
88.2 - 60x34"
88.3 - 60x30"
88.5 - 60x36"

Threshold on short dimension
92 - 32x36"
94 - 36x42"
94.5 - 36x48"
Download File(s)
82-94.5 (PDF) / 82-88.5 (RFA), 94 (RFA), 92-94.5 (RFA)

TRIESTE SQUARE

54 Trieste square

Product Details

54 Trieste Square
50 - 66
WIDE INTEGRAL THRESHOLD. Easily accommodates glass or plastic doors.
Choice of styles for greater design flexibility. For a corner shower, specify model with two sides flanged and threshold on two sides. For recessed installation, specify model with three sides flanged and threshold on one side. All floors have a 2" brass drain with removable flat snap-in stainless steel strainer.
NOTE: All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm). Dimensions Threshold on one side Flange on three sides.
50 - 30x30"
52 - 32x32"
53 - 34x34"
54 - 36x36"
56 - 40x40"
57 - 42x42"
58 - 48x48"

Threshold on two adjacent sides Flange on two adjacent sides
62 - 32x32"
64 - 36x36"
66 - 40x40"

WHEELCHAIR SHOWER FLOORS - Three sides flanged, ramped threshold
54-HC - 36x36"
84.5-HC - 48x36"
98-HC - 60x60"
Download File(s)
50-66 (PDF) / 50-58 (RFA), 62-66 (RFA)
54-HC, 84.5-HV, 98-HC (PDF) / 54-HC-84.5-HC (RFA), 98-HC(RFA)

TRIESTE NEO-CORNER

43 Trieste Neo Corner

Product Details

43 Trieste Neo Corner
42 - 46
WIDE INTEGRAL THRESHOLD. Easily accommodates glass or plastic doors.
The two wall sides of this space-saving shower floor are flanged for built-up construction on the job. Wide integrally cast terrazzo threshold on three sides forms a perfect base for glass or plastic enclosure and saves the cost of a tiled threshold.
NOTE: All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm) Dimensions 42 - 32x32"
43 - 34x34"
44 - 36x36"
45 - 38x38"
46 - 40x40"
Download File(s)
42-46 (PDF) / 42-46 (RFA)

SERPENTINE WHEELCHAIR

WS-3200

Product Details

Institutional Shower Floor SERPENTINE Wheelchair Shower Floor with Stainless Steel Cap
WS-3200 - WS-3505
Institutional 6” sidewall; Barrier Free
WS-Series SERPENTINE shower floor for the handicapped with 6" stainless steel entry cap on integral ramp, available in recommended several sizes, with tiling flange on the remaining 3 sides for a water tight joint between the wall and shower floor.
Option(s): RDM Collapsible Water Dam recommended (HC, WDA, WS Series)
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm)
Notes: All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm) Dimensions WS-3200 - 36x36"
WS-3500 - 48x48"
WS-3501 - 60x48"
WS-3502 - 60x60"
WS-3503 - 42x70"
WS-3504 - 48x70"
WS-3505 - 60x70"
Download File(s)
WS-3200-3505 (PDF) / WS-3200-3505 (RFA)

SERPENTINE ROLL-IN MODEL

WH-2200

Product Details

Institutional Shower Floor SERPENTINE Wheelchair Shower Floor
WH-2200 - WH-3000
Institutional 6” sidewall; Barrier Free
WH-Series . . . handicapped accessible shower floor with lower than normal threshold to assist the aged and infirmed . . . ideal for nursing homes, retirement villages and apartments. Must be recessed 2" into the subfloor for barrier free access. 2" brass drain with removable flat snap-in stainless steel strainer is standard.
Option(s):
-RDP Removable Aluminum Alumni Ramp(WH Series)
NOTE:
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm)
Dimensions WH-2200
WH-2400
WH-2500
WH-2600
WH-2700
WH-2800
WH-2900
WH-3000
Download File(s)
WH-2200-3000 (PDF) / WH-2200-3000 (RFA)

SERPENTINE BACK OUTLET DRAIN

34-BO

Product Details

Institutional Shower Floor SERPENTINE Back Outlet Drain
34-BO
FLANGED and/or rabbet or off-the-floor roughing.
High 6” side wall. Specify plain shoulders (i.e.: 34-BO) for installation flush against room wall. Specify tiling flanges for tile wall construction (i.e.: 34-BO-FFF three tiling flanges) or cast rabbets (i.e.: 34-BO-R provide rabbet configuration) to hold precut, drop-in panels of partitioning material.
NOTE: All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm) Dimensions 34-BO - 36x36"
Download File(s)
34-BO (PDF) / 34-BO (RFA)

SERPENTINE DOUBLE DRAIN

36-DD

Product Details

Institutional Shower Floor SERPENTINE Double Drain
36-DD
High 6” side wall. Specify plain shoulders (i.e.: #36-DD) for installation flush against room wall. Specify tiling flanges for tile wall construction (i.e.: #36-DD-F3 three tiling flanges) or cast rabbets (i.e.: #36-DD-R provide rabbet configuration) to hold precut, drop-in panels of partitioning material. Dimensions 36-DD - 72X36"
Download File(s)
36-DD (PDF) 36-DD (RFA), 36-D (RFA)

SERPENTINE SQUARE & RECTANGULAR

34-Single-drain

Product Details

Institutional Shower Floor
34 - 36-DD
High 6” side wall. Specify plain shoulders (i.e.: #34) for installation flush against room wall. Specify tiling flanges for tile wall construction (i.e.: #34-FFF three tiling flanges) or cast rabbets (i.e.: #34-R provide rabbet configuration) to hold precut, drop-in panels of partitioning material. Dimensions 34 - 36x36"
34-NC - 36x36"
34.5 - 48x36"
36-D - 72x36"
Download File(s)
34, 34.5, 36-D (PDF) / 34 (RFA), 36-D (RFA), 34.5-36-D (RFA)

SERPENTINE NEO-CORNER

34-NC

Product Details

Institutional Shower Floor SERPENTINE Neo-Corner
34-NC
FLANGED ALL SIDES For threshold to be built on the job.
High 6” side wall. Specify plain shoulders (i.e.: #34-NC) for installation flush against room wall. Specify tiling flanges for tile wall construction (i.e.: #34-NC-F3 three tiling flanges) or cast rabbets (i.e.: #34-NC-R provide rabbet configuration) to hold precut, drop-in panels of partitioning material.
Dimensions 34-NC - 36x36"
Download File(s)
34-NC (PDF) / 34-NC (RFA)

PARIAN RAMP TYPE

Ramp Type

Product Details

PARIAN RAMP TYPE / Three sides flanged*
WDA-3600 - WDA-3620
Terrazzo's natural non-slip surface provides better footing and increased safety. Wheelchair shower floors are flanged on three sides for a water tight joint between the wall and shower floor. These shower floors must be set on a level grout or mortar bed.

The intent is to allow a wheelchair patient to lift one’s self onto a transfer seat with the assistance of a grab bar. This transfer type shower floor has an integral cast 12” ramp with a stainless steel cap that covers and protects the leading 6” of the ramp. A floor drain by others at the entrance to the sloped threshold and a collapsible water dam (Option: -RDM) are recommended for added protection.
NOTE: * Note: Flanges are intended to be used with wall tile applied by others to conform with Federal, state and local shower stall dimensions. Floors can be supplied less flanges (-LF). Dimensions WDA-3600 - 39x39"
WDA-3610 - 60x30"
WDA-3620 - 60x36"
Download File(s)
WDA-3600-3620 (PDF) / WDA-3600-3660 (RFA)

PARIAN ROLL-IN TYPE

ROLL-IN TYPE

Product Details

PARIAN ROLL-IN TYPE / Three sides flanged*
WDA-3400 - WDA-3420
Terrazzo's natural non-slip surface provides better footing and increased safety. Wheelchair shower floors are flanged on three sides for a water tight joint between the wall and shower floor.These shower floors must be set on a level grout or mortar bed.
The intent is to allow a wheelchair patient to remain seated in the wheelchair and roll into the shower. This model must be recessed into the building floor to allow unobstructed wheelchair entry.
NOTE: Flanges are intended to be used with wall tile applied by others to conform with Federal, state and local shower stall dimensions. Floors can be supplied less flanges (-LF). Dimensions WDA-3400 - 39x39"
WDA-3410 - 60x30"
WDA-3420 - 60x36"
Download File(s)
WDA-3400-3460 (PDF) / WDA-3400-3460 (RFA)

SUSSEX RECTANGULAR

32-Sussex

Product Details

SUSSEX RECTANGULAR
32
FLANGED ALL SIDES For threshold to be built on the job.
Choose rectangular models for recessed installations. Rectangular model produces the largest area for showering.
NOTE: All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm). Dimensions 32 - 48x32"
Download Files
32 (PDF) / 32 (RFA)

SUSSEX SQUARE

24-sussex

Product Details

SUSSEX SQUARE
22
FLANGED ALL SIDES For threshold to be built on the job.
Choose square models for recessed installations. Square unit is available in 3 sizes for flexibility in design.
Dimensions 22 - 32x32"
24 - 36x36"
26 - 40x40"
Download Files
22-26 (PDF) / 22-26 (RFA)

SUSSEX NEO-CORNER

14-Sussex

Product Details

SUSSEX NEO-CORNER
14 - 16
FLANGED ALL SIDES For threshold to be built on the job.
Meets all standard requirements for built-up construction using tile or other wall treatments. Neo-corner provides a roomy shower while conserving floor space.
Dimensions 14 - 32x32"
16 - 40x40"
Download Files
SUSSEX - 14, 16 (PDF) / 14-16 (RFA)

STANDARD MODELS

SC-40

Product Details

STANDARD MODELS
SC-32 - SC-40
Includes Terrazzo Shower Floor, S-140 pressure balanced valve and head, soap dish, rod and curtain. Standard wall finish is white powder coated metal. Options: Top only SC-TC
Top and dome light SC-TCLF
Corner filler strip SC-7
Joint filler strip SC-JFS*
Filler block -FB*
Thermostatic valve SC-140-TCV
Attached dressing compartment -DC*
Shower door SC-TDG (N/A SC-40)
Valve by others
* Layout sketch required
Optional Wall Finishes: Stainless Steel (-SS)
* Solid Phenolic Core (-SPC)
* High Density Polymer (-HDP) )
NOTE: Specify R or L hand drilling. Dimensions SC-32 32x32x82" Front entry.
SC-36 36x36x82" Front entry.
SC-38 36x36x82" Double entry.
SC-39 36x36x82" Double entry corner type.
SC-40 40x40x82" Neo-corner.
Download File(s)
SC-32 (PDF) / SC-32-36 (RFA)
SC-36 (PDF) / SC-32-36 (RFA)
SC-38 (PDF) / SC-38 (RFA)
SC-39 (PDF) / SC-39 (RFA)
SC-40 (PDF) / SC-40 (RFA)

PHYSICALLY CHALLENGED MODELS

HSC-430-ada

Product Details

PHYSICALLY CHALLENGED. ROLL-IN-TYPE
HSC-400 - HSC-460
We suggest a floor drain at the entrance to this model.
* Terrazzo floor has 2" threshold and will require recess in floor for ADA accessibility.
Standard wall finish is white powder coated metal. Includes S-140-SS pressure balanced valve, with separate strops. Hand held showerhead with swivel fitting, 69" flexible C.P. brass hose, and in-line vacuum breaker. Stainless steel curtain rod, GSA approved curtain. Retractable handicapped shower seat with stainless steel frame. Two stainless steel grab bars with concealed mounting.
Options: Top only HSC-TC
Top and dome light HSC-TCLF
Filler strip SC-6 (front), SC-7 (back)
Valve by others
Joint filler strip SC-JFS*
Filler block -FB*
Thermostatic valve SC-140-TCVH
Attached dressing compartment -DC*
Collapsible water dam -RDM.
* Layout sketch required
Optional Wall Finishes: Stainless Steel (-SS)
* Solid Phenolic Core (-SPC)
* High Density Polymer (-HDP)
NOTE: Specify R or L hand drilling.
*ADA compliant We suggest a floor drain at the entrance to the transfer type. Includes a roll in type Terrazzo shower floor. Pressure balance valve with separate stops. SC-140-SS Hand held shower combination with swivel fitting, 69” flexible C.P. brass hose and in-line vacuum breaker. Retractable phenolic shower seat.
Horizontal and vertical stainless steel grab bars with concealed mounting. Heavy duty white curtain and rod. * Standard color is white. Optional colors are available.
Dimensions HSC-400 40x40x82"
HSC-430 65x33x82"
HSC-460 65x39x82"
Download File(s)
HSC-400 (PDF) / HSC-400(RFA)
HSC-430 (PDF) / HSC-430-460 (RFA)
HSC-460 (PDF) / HSC-430-460 (RFA)

PHYSICALLY CHALLENGED MODELS

HSC-143-ada

Product Details

PHYSICALLY CHALLENGED. TRANSFER-TYPE
HSC-143 - HSC-660
We suggest a floor drain at the entrance to this model. Terrazzo floor has stainless steel cap and 1/2" entry when installed according to instruction. Standard wall finish is white powder coated metal. Includes S-140-SS pressure balanced valve, with separate strops. Hand held showerhead with swivel fitting, 69" flexible C.P. brass hose, and in-line vacuum breaker. Stainless steel curtain rod, GSA approved curtain. Retractable handicapped shower seat with stainless steel frame. Two stainless steel grab bars with concealed mounting. Options: Top only HSC-TC
Top and dome light HSC-TCLF
Filler strip SC-6 (front), SC-7 (back)
Valve by others
Joint filler strip SC-JFS*
Filler block -FB*
Thermostatic valve SC-140-TCVH
Attached dressing compartment -DC*
Collapsible water dam -RDM
*Layout sketch required
Optional Wall Finishes: Stainless Steel (-SS)
* Solid Phenolic Core (-SPC)
* High Density Polymer (-HDP)
* Standard color is white
Optional colors are available
NOTE: All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm). Specify R or L hand drilling. ADA* Compliant. Dimensions HSC-143. 40x40x82"*
HSC-145 40x48x82"
HSC-630 65x33x82"*
HSC-660 65x39x82"*
Download File(s)
HSC-143 (PDF) / HSC-143 (RFA)
HSC-145 (PDF) / HSC-145 (RFA)
HSC-630 (PDF) / HSC-630-660 (RFA)
HSC-660 (PDF) / HSC-630-660 (RFA)

ACCESSORIES

T-15-VB

Product Details

Accessories
T-15-VB - T-10-VB
Sink Fitting
Sink fitting, the same as T-10-VB with Polished Chrome finish.

T-10-VB Sink fitting with integral stops, lever handles and spring checks. Spout with bucket hook, 3/4” hose thread end. Vacuum breaker; adjustable top brace. Inlets 8” on centers. Chrome finish.

T-10-VB Manufactured before 3/07, Manufactured after 3/07, Disrtributed after 11/1/12. Sink fitting with integral stops, lever handles and spring checks. Spout with bucket hook, 3/4” hose thread end. Vacuum breaker; adjustable top brace. Inlets 8” on centers. Chrome finish.

T-15-VB Manufactured before 3/07, Manufactured after 3/07, Disrtributed after 11/1/12. Same as T-10-VB with polished Chrome finish.
Download File(s)
T-10-VB & T-15-VB (PDF) Manufactured 9/87 – 7/99
T-10-VB & T-15-VB (PDF) Manufactured 7/99 - 3/07
T-10-VB & T-15-VB (PDF) Manufactured 3/07 – 10/12
T-10-VB & T-15-VB (PDF) Manufactured 1/12
T-10-VB & T-15-VB (PDF) Manufactured 11/12
T-10-15 VB Series (RFA)

DRINKING FOUNTAINS – ACCESSORIES

Model WDF-1025

Product Details

DRINKING FOUNTAINS - ACCESSORIES
WC-8 - WG-1
REMOTE ELECTRIC CHILLERS Equip any WILLIAMS wall-mounted or countertop model to serve as a refrigerated drinking fountain.

Compact, efficient cooler unit connects to bubbler. Installs directly below the drinking fountain, or in a service area, even overhead. Heavy steel cabinet, double baked paint. Compressor is hermetically sealed. UL and CSA approved. Equip any WILLIAMS wall-mounted or countertop model to serve as a refrigerated drinking fountain.
NOTE:
Air cooled remote chillers require air circulation for proper operation. Any chiller mounted under a counter must also have adequate ventilation. Louvered grills available as extra cost options.

Remote water chillers should serve a maximum of three bubblers each, regardless of distance to farthest fountain. It is recommended that all water outlets be not more than 15 feet from the chiller and all cold water piping be covered with sponge rubber or ice water type insulation of adequate thickness.
Dimensions
WC-8 19 x 24" / 1/5 h.p. Compressor Louvered Ventilating Grills For use with remote chillers.
WG-1 19 x 24" / Type 304 stainless steel
Download File(s)
WC-8 (PDF)

ACCESSORIES – OPTIONS

-FP

Product Details

FROST-PROOF VALVE
FP
Accessories-Options
FP Frost-proof valve for year around use. Available on all models shown above.
Frost-proof valve system for wall mounted drinking fountains
NOTE:
These rough-in dimensions may vary 1/2" (13mm) plus or minus.
It is recommended that a dual check valve backflow prevention be installed in the waterline going to any Frost-Proof fountain.
All dimensions subject to manufacturing variance of plus or minus 1/4" (6mm)

Dimensions
Missing
Download File(s)
FP (PDF)

ACCESSORIES

TC-2

Product Details

Accessories
TC-2 - TC-3-2
Speedi Drain Connectors - Shower Drain Gasket
For schedule 40 steel pipe, PVC, ABS and C.I. pipe.

Mop Sink Drain Gaskets
TC-3 -3” For XHCI, plastic and steel pipe.
TC-3-NH -3” For SV and NHCI pipe.
TC-3-2 - 3” Reducer with 2” hole.
Use only with Stern-Williams shower floors and mop sinks.

ACCESSORIES

WH-2700

Product Details

Accessories
HC, WDA, WS
RDM Collapsible Water Dam (HC, WDA, WS Series) The Collapsible Dam was designed specifically for all type of barrier-free, curbless showes that require water control. Collapses easily by foot or wheelchair, the Collapsible Dam features a strong self-adhesive, water resistant tape bottom that eliminates messy applied adhesives.
Marble Colors: Standard: Black and White Optional: White(-W), Tan (-T) or Pearl Gray (-PG)
Standard Drain: Integral cast 2" brass drain with removable stainless steel strainer plate
Option(s):
Polished Brass Strainer (-PB) 2" drain gasket (TC-2) Vandal Proof Drain (-VP) Collapsible Water Dam (-RDM) Removable Aluminum Ramp (-RRP)
