BARRIER FREE REFRIGERATED


DRINKING FOUNTAINS – WALL MOUNTED

Posted in BARRIER FREE REFRIGERATED, Drinking Fountain, METAL PEDESTAL, Products by ats-administrator / November 10, 2015 / Comments Off on DRINKING FOUNTAINS – WALL MOUNTED
5320-5320-RV-5320-FP-updated-new


Product Details


DRINKING FOUNTAINS - METAL Wall, BARRIER FREE WALL MOUNTED FOUNTAINS
5320, 5320-RV-5320-FP
Striking design with clean, sleek lines. Designed to defy the elements, resist vandals and stand up to hard use. The chrome-plated brass bubbler is locked to the stainless steel receptor. Push button valve is vandal resistant and recessed in steel plate. Vandal resistant bubbler guard.Standard features include:
  • • Woodland green Polyester Powder Coat finish, (Optional colors)
  • • Chrome-plated brass bubbler locked to stainless steel receptor
  • • Push button valve
  • • Bubbler guard
  • • Automatic flow regulation
  • • Supply complete with 1/2" IPS lock shield screwdriver stop
  • • 1-1/4" IPS waste
  • • Front mount
  • • Vinyl Reinforced hose
  Option(s): (Add Suffix)
-RV Reverse heights
-SS Stainless steel
BFCE-15 Cane extension (must be requested at order placement)
BFCE-15-RV Reverse heights
FLWMP-2-FM Support carrier with mounting plate
FLMP-2-RV-FM Same reversed hights
WMP-2-FM Mounting plate
WMP-2-RV-FM Same reversed hights
 NOTE:
All-Purpose Drinking Fountain -- Steel pipe Mounting: Wall
These rough-in dimensions may vary 1/2" (13 mm) plus or minus
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm)
 Dimensions
5315 13"H x 20" L / Dual wall mounted with backplate (shown)
5315-RV 13"H x 20" L / Same with higher unit on left
5315-FP 13"H x 20" L / With freeze-proof valve system
 Download File(s)
5320 (PDF) / 5320 (RFA) / 5320-RV (PDF)

DRINKING FOUNTAINS – PEDESTAL WALL MOUNT

Posted in BARRIER FREE REFRIGERATED, Drinking Fountain, METAL PEDESTAL, Products by ats-administrator / February 12, 2014 / Comments Off on DRINKING FOUNTAINS – PEDESTAL WALL MOUNT
Model 5725-MWL

Product Details

DRINKING FOUNTAINS - METAL Wall, PEDESTAL WALL MOUNT - BARRIER FREE WALL MOUNTED FOUNTAINS
5725-MWL
Striking design with clean, sleek lines. Designed to defy the elements, resist vandals and stand up to hard use. The chrome-plated brass bubbler is locked to the stainless steel receptor. Push button valve is vandal resistant and recessed in steel plate. Vandal resistant bubbler guard.

Standard features include:
Conceals existing plumbing
Wall mounted with the added stability of a pedestal. NOTE:
All-Purpose Drinking Fountain -- Steel pipe Mounting: Surface
These rough-in dimensions may vary 1/2" (13 mm) plus or minus
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm) Dimensions
5725-MWL 43-1/4"H x 10-3/4" W x 25-3/8 L / Dual Surface and Wall mounted Download File(s)
5725-MWL (PDF) / 5725-MWL (RFA)

DRINKING FOUNTAINS – PEDESTAL WALL MOUNT

Posted in BARRIER FREE REFRIGERATED, Drinking Fountain, METAL PEDESTAL, METAL WALL MOUNTED, Products by ats-administrator / February 12, 2014 / Comments Off on DRINKING FOUNTAINS – PEDESTAL WALL MOUNT
Model 5400-MWL

Product Details

DRINKING FOUNTAINS - METAL Wall, PEDESTAL WALL MOUNT - BARRIER FREE WALL MOUNTED FOUNTAINS
5400-MWL - 5400-MWL-FP
Striking design with clean, sleek lines. Designed to defy the elements, resist vandals and stand up to hard use. The chrome-plated brass bubbler is locked to the stainless steel receptor. Push button valve is vandal resistant and recessed in steel plate. Vandal resistant bubbler guard.

Standard features include:
Conceals existing plumbing
Wall mounted with the added stability of a pedestal. NOTE:
All-Purpose Drinking Fountain -- Steel pipe Mounting: Wall
These rough-in dimensions may vary 1/2" (13 mm) plus or minus
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm) Dimensions
5400-MWL 38-1/4"H x10-3/4" W x 25-3/8 L / Surface and Wall mounted (shown)
5400-MWL-FP 38-1/4"H x10-3/4" W x 25-3/8 L / With freeze-proof valve system
 Download File(s)
5400-MWL, 5400-MWL-FP (PDF) / 5400-MWL (RFA)

DRINKING FOUNTAINS – WALL MOUNTED

Posted in BARRIER FREE REFRIGERATED, Drinking Fountain, METAL PEDESTAL, METAL WALL MOUNTED, Products by ats-administrator / February 12, 2014 / Comments Off on DRINKING FOUNTAINS – WALL MOUNTED

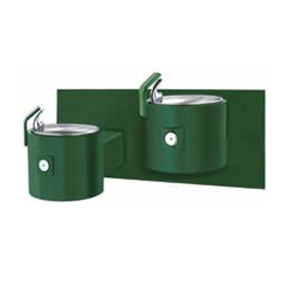

Model 5315

Product Details

DRINKING FOUNTAINS - METAL Wall, BARRIER FREE WALL MOUNTED FOUNTAINS
5315 - 5315-FP
Striking design with clean, sleek lines. Designed to defy the elements, resist vandals and stand up to hard use. The chrome-plated brass bubbler is locked to the stainless steel receptor. Push button valve is vandal resistant and recessed in steel plate. Vandal resistant bubbler guard.

Standard features include:
• Woodland green Polyester Powder Coat finish, (Optional colors)
• Chrome-plated brass bubbler locked to stainless steel receptor
• Push button valve
• Bubbler guard
• Automatic flow regulation
• Supply complete with 1/2" IPS lock shield screwdriver stop
• 1-1/4" IPS waste
• Vinyl Reinforced hose Option(s):(Add Suffix)
-RV Reverse heights
-SS Stainless steel
BFCE-15 Cane extension (must be requested at order placement)
BFCE-15-RV Reverse heights
FLWMP-2 Support carrier with mounting plate
FLMP-2-RV Same reversed hights
WMP-2 Mounting plate
WMP-2-RV Same reversed hights NOTE:
All-Purpose Drinking Fountain -- Steel pipe Mounting: Wall
These rough-in dimensions may vary 1/2" (13 mm) plus or minus
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm) Dimensions
5315 13"H x 20" L / Dual wall mounted with backplate (shown)
5315-RV 13"H x 20" L / Same with higher unit on left
5315-FP 13"H x 20" L / With freeze-proof valve system Download File(s)
5315 (PDF) / 5315 (RFA)
5315-RV, 5315-FP (PDF) / 5315-RV(RFA)

DRINKING FOUNTAINS – REFRIGERATED PEDESTAL

Posted in AGGREGATE PEDESTAL, BARRIER FREE REFRIGERATED, Drinking Fountain, Products by ats-administrator / February 12, 2014 / Comments Off on DRINKING FOUNTAINS – REFRIGERATED PEDESTAL
Model SPER-3100-C

Product Details

DRINKING FOUNTAINS - REFRIGERATED, AGGREGATE PEDESTAL
SPFR-3781-C - SPFR-3781-Q
ALL PURPOSE PEDESTAL FOUNTAINS, , Series SPFR-3780 ADA Compliant Chilled Pedestal Fountain. Dual bubbler in Aggregate finish. Delivers 8.0 GPH of chilled water. Option(s):
SMP-24 Square surface mounting plate NOTE:
All-Purpose Drinking Fountain -- Mounting: Surface
These rough-in dimensions may vary 1/2" (13 mm) plus or minus
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm) Dimensions
SPFR-3780-C 20"W with 24" base Height: 40" / Colorama, light etched
SPFR-3781-C 20"W with 24" base Height: 40" / Colorama, medium etched
SPFR-3780-Q 20"W with 24" base Height: 40" / Quiet Creek, light etched
SPFR-3781-Q 20"W with 24" base Height: 40" / Quiet Creek, medium etched Download File(s)
SPFR-3780 (PDF) / SPFR-3780 (RFA)

DRINKING FOUNTAINS – REFRIGERATED S.STEEL

Posted in BARRIER FREE REFRIGERATED, Drinking Fountain, Products, REFRIGERATED STAINLESS STEEL by ats-administrator / February 11, 2014 / Comments Off on DRINKING FOUNTAINS – REFRIGERATED S.STEEL
Model BFR-6075

Product Details

STAINLESS STEEL BARRIER FREE REFRIGERATED DRINKING FOUNTAINS
BFR-6075
Sensor operated. Uses standard 110V, 60-cycle electrical connection. U.L. listed. 8.0 gph
Mounting Frame: BFMF-1
Barrier Free, Wall-mounted Drinking Fountain -- Stainless Steel, Sensor Operated
These rough-in dimensions may vary 1/2" (13 mm) plus or minus.
 NOTE:
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm).
 Dimensions
BFR-6075 33-1/2"H x 19"W with 18-1/2" extension. Recesses into wall: 12"
 Download File(s)
BFR-6075 (PDF) / BFR-6075 (RFA)

DRINKING FOUNTAINS – REFRIGERATED S.STEEL

Posted in BARRIER FREE REFRIGERATED, Drinking Fountain, Products, REFRIGERATED STAINLESS STEEL by ats-administrator / February 11, 2014 / Comments Off on DRINKING FOUNTAINS – REFRIGERATED S.STEEL
Model BFR-6050

Product Details

STAINLESS STEEL BARRIER FREE REFRIGERATED DRINKING FOUNTAINS
BFR-6050
With traditional BEVELED front and push button on front panel. 8.0 gph
 Mounting Frame: BFMF-1 Barrier Free, Dual Level Wall-mounted Drinking Fountain -- Stainless Steel, Push Button on Front Panel
 NOTE:
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm).
 Dimensions
BFR-6050 33-1/2"H x 19"W with 18-1/2" extension. Recesses into wall: 12"
 Download File(s)
BFR-6050 (PDF) / BFR-6050 (RFA)

DRINKING FOUNTAINS – REFRIGERATED S.STEEL

Posted in BARRIER FREE REFRIGERATED, Drinking Fountain, METAL WALL MOUNTED, Products, REFRIGERATED STAINLESS STEEL by ats-administrator / February 11, 2014 / Comments Off on DRINKING FOUNTAINS – REFRIGERATED S.STEEL
Model BFR-6025

Product Details

STAINLESS STEEL BARRIER FREE REFRIGERATED DRINKING FOUNTAINS
BFR-6025 - BFR-6025-RV
Dual level, sensor and push button operated. Controls located on front panel. Sensor uses standard 110V, 60-cycle electrical connection. U.L. listed. 8.0 gph
Mounting frame: BFMF-2 Option(s):
BFR-6025-RV Reverse height option
BFCA-1 Cane touch apron for ADA protruding objects compliance Barrier Free, Dual Level Wall-mounted Drinking Fountain -- Stainless Steel, Push Button on Front Panele
 NOTE:
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm).
 Dimensions
BFR-6025 35-7/8"H x 35"W with 18-1/2" extension. Recesses into wall: 12"
BFR-6025-RV Reverse height option Download File(s)
BFR-6025 (PDF) / BFR-6025 (RFA)
BFR-6025-RV (PDF) / BFR-6025-RV (RFA)

DRINKING FOUNTAINS – REFRIGERATED S.STEEL

Posted in BARRIER FREE REFRIGERATED, Drinking Fountain, Products, REFRIGERATED STAINLESS STEEL by ats-administrator / February 11, 2014 / Comments Off on DRINKING FOUNTAINS – REFRIGERATED S.STEEL
Model BFR-6000

Product Details

STAINLESS STEEL BARRIER FREE REFRIGERATED DRINKING FOUNTAINS
BFR-6000 - BFR-6000-RV
Dual level with push button on the front panel. 8.0 gph.
Mounting frame: BFMF-2
Recesses into wall: 12" Option(s):
BFCA-1 Cane touch apron for ADA protruding objects compliance Barrier Free, Dual Level Wall-mounted Drinking Fountain -- Stainless Steel, Push Button on Front Panel
 NOTE:
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm).
 Dimensions
BFR-6000 35-7/8"H x 35"W with 18-1/2" extension
BFR-6000-RV Reverse height option Download File(s)
BFR-6000 (PDF) / BFR-6000 (RFA), BFR-6000-RV (RFA)
