COLOR & ACCESSORIES


DRINKING FOUNTAINS – ACCESSORIES

Posted in COLOR & ACCESSORIES, Drinking Fountain, Products by ats-administrator / February 12, 2014 / Comments Off on DRINKING FOUNTAINS – ACCESSORIES
Model WDF-1025

Product Details

DRINKING FOUNTAINS - ACCESSORIES
WC-8 - WG-1

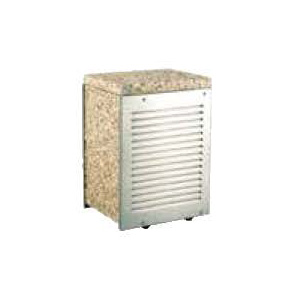

REMOTE ELECTRIC CHILLERS Equip any WILLIAMS wall-mounted or countertop model to serve as a refrigerated drinking fountain.

Compact, efficient cooler unit connects to bubbler. Installs directly below the drinking fountain, or in a service area, even overhead. Heavy steel cabinet, double baked paint. Compressor is hermetically sealed. UL and CSA approved. Equip any WILLIAMS wall-mounted or countertop model to serve as a refrigerated drinking fountain. NOTE:
Air cooled remote chillers require air circulation for proper operation. Any chiller mounted under a counter must also have adequate ventilation. Louvered grills available as extra cost options.

Remote water chillers should serve a maximum of three bubblers each, regardless of distance to farthest fountain. It is recommended that all water outlets be not more than 15 feet from the chiller and all cold water piping be covered with sponge rubber or ice water type insulation of adequate thickness. Dimensions
WC-8 19 x 24" / 1/5 h.p. Compressor Louvered Ventilating Grills For use with remote chillers.
WG-1 19 x 24" / Type 304 stainless steel Download File(s)
WC-8 (PDF)

ACCESSORIES – OPTIONS

Posted in AGGREGATE PEDESTAL, COLOR & ACCESSORIES, COLOR & ACCESSORIES, Drinking Fountain, Drinking Stations, METAL PEDESTAL, Products, REFRIGERATED PEDESTAL, REFRIGERATED STAINLESS STEEL by ats-administrator / February 23, 2014 / Comments Off on ACCESSORIES – OPTIONS
-FP

Product Details

FROST-PROOF VALVE
FP
Accessories-Options
 FP Frost-proof valve for year around use. Available on all models shown above.
Frost-proof valve system for wall mounted drinking fountains NOTE:
These rough-in dimensions may vary 1/2" (13mm) plus or minus.
It is recommended that a dual check valve backflow prevention be installed in the waterline going to any Frost-Proof fountain.
All dimensions subject to manufacturing variance of plus or minus 1/4" (6mm)

Dimensions
Missing
 Download File(s)
FP (PDF)
