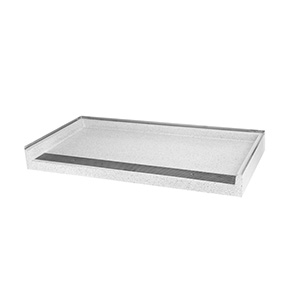

The 14 gauge stainless steel grate is secured to the terrazzo shower floor. Under the grate is a 2” bottom outlet brass drain which cast integral. Dimensions
WDA-3705 40x38”/ grate is 5” wide x 36” long
WDA-3730 64x32” / the grate is 5” wide x 60” long
WDA-3760 64x38” / the grate is 5” wide x 60” long
WDA-3705-3760(PDF) / WDA-3705-3760 Series (RFA)
WDA-3430 - WDA-3460
Terrazzo's natural non-slip surface provides better footing and increased safety. Wheelchair shower floors are flanged on three sides for a watertight joint between the wall and shower floor. These shower floors must be set on a level grout or mortar bed.
The intent is to allow a wheelchair patient to remain seated in the wheelchair and roll into the shower. This model must be recessed into the building floor to allow unobstructed wheelchair entry.
All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm). The above models conform to 2010 ADA standards for accessible design and A.117.1–2009.
Inside Dimensions: (A) 36x36" inside, (B) 60x30" inside, (C) 60x36" inside
WDA-3405 - 40x38" (A)
WDA-3430 - 64x32" (B)
WDA-3460 - 64x38" (C)
The intent is to allow a wheelchair patient to lift one’s self onto a transfer seat with the assistance of a grab bar. This transfer type shower floor has an integral cast 12” ramp with a running slope of 1:12. A stainless steel cap covers and protects the leading 6” of the ramp. A floor drain by others at the entrance to the sloped threshold and a collapsible water dam (Option: -RDM) are recommended for added protection. NOTE: All dimensions subject to manufacturing variance of plus or minus 1/4" (6 mm). The above models conform to 2010 ADA standards for accessable design and A.117.1–2009.
Inside Deminsions: (A) 36x36" inside, (B) 60x30" inside, (C) 60x36" inside Dimensions
WDA-3605 - 40x38" (A)
WDA-3630 - 64x32" (B)
WDA-3660 - 64x38" (C)
WDA-3605, WDA-3630, WDA-3660 (PDF) / WDA-3600-3660 (RFA)
