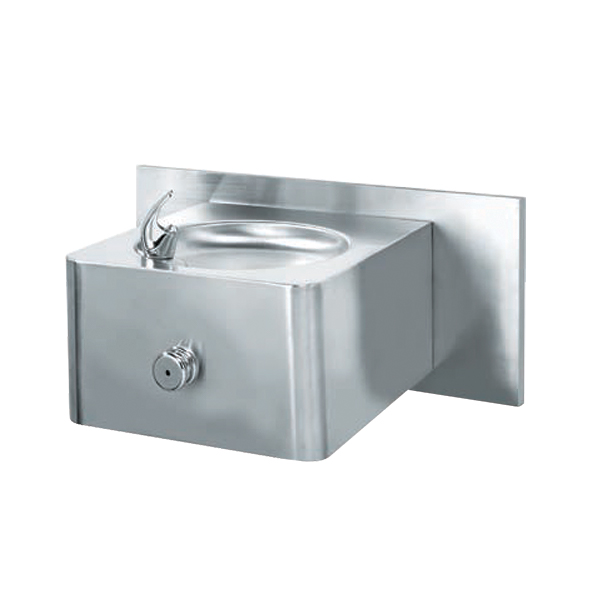

SF-5100 SERIES STAINLESS STEEL WALL MOUNTED FOUNTAINS

Lustrous satin-finish stainless steel satisfies the criteria for cleanliness and easy care in medical centers and office buildings. Push button control located on front panel. Vandal resistant bottom plate and mounting plate are standard. Beveled front with or without back plate.

Product Number for the STAINLESS STEEL WALL MOUNTED FOUNTAINS:

SF-5100 (with back plate)

SF-5100-FP (with back plate)

SF-5110

SF-5110-FP

-FP are frost proof models.
It is recommended that a dual check valve backflow prevention be installed in the waterline going to any FP fountain.

​​Product number corresponds to dimensions tab below. Select your product number to fit the space you need

Complies with NSF/ANSI/CAN 61 Q≤1 (AB100) Standards

18 gauge type 304 brushed stainless steel finish

Vandal resistant access plates for security and simple future maintenance

Vandal resistant bottom plate and mounting plate comes standard

Simple flow adjustment without dismantling fountain

Attractive, protective stainless steel back plate

SF-5100 9-5/8″H x 19″W with 13″ extension

SF-5110 7″H x 12″W with 12-1/2″ extension

All dimensions subject to manufacturing variance of plus or minus 1/4″ (6 mm).
