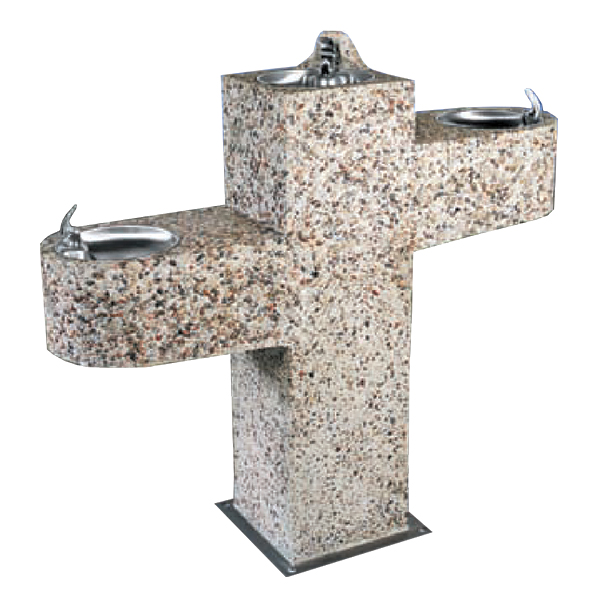

TRIPLE AGGREGATE FOUNTAIN
These all-purpose fountains are ideal for high traffic and maintain a great finish in rough environments. Delivers 8.0 GPH of chilled water refreshment.
Surface type with mounting plate welded to pedestal.
-FP are frost proof models.
It is recommended that a dual check valve backflow prevention be installed in the waterline going to any FP fountain.
-FPS are sanifrost models which will not allow stored water to re-enter the bubbler.
Product Number for the TRIPLE AGGREGATE FOUNTAINS:
-31 | Chrome Plated Self-closing Jug Filler
-32 | RCP Compression Type, Hose bibb with VB
-32-LK | RCP Compression Type, Hose bibb with VP and Loose Key
-32-SC | Self Closing Hose bibb with VB
-33-VP | Compression Type, Hose Bibb with S.S. Box with Locking Cover
-34 | Frost Proof Jug Filler
-36 | Push Button Jug Filler
-37 | Foot Spray
-38 | Shutdown/Drain Valve
-40 | Commemorative Plaque
-42 | S.S. Bubbler Guard
-65 | Matching Step for Square Fountain
-84 | Water Filter
-85 | Valve Box (Recommended for -FP Units)
-94 | Pet Fountain-attached
-94-FP | Frost Proof
-95 | Sand Trap
-96 | Sand Strainer Plate
SMP-12S | Surface Mounting Plate
Mounting plate and stainless steel bottom plate come standard
Push button valve, centered on vandal resistant stainless steel access plate
Adjustable flow regulation
18 gauge brush finished stainless steel receptor with a vandal resistant chrome plated brass drain plug
Stainless steel supply fittings connected to reinforced tubing
In-line mesh screen strainer
Delivers 8.0 GPH of chilled water refreshment
Available in single, double or triple fountain styles (see ADF-3700 or ADF-3900)
Supply complete with 1/2” IPS lock shield screwdriver stop
1-1/4” IPS waste pipes included with every fountain
ADF-3900-C 40″H x 12″W x 48″L with 15″ / square base, Colorama, light etched
ADF-3901-C 40″H x 12″W x 48″L with 15″ / square base, Colorama, medium etched
All dimensions subject to manufacturing variance of plus or minus 1/4″ (6 mm).
