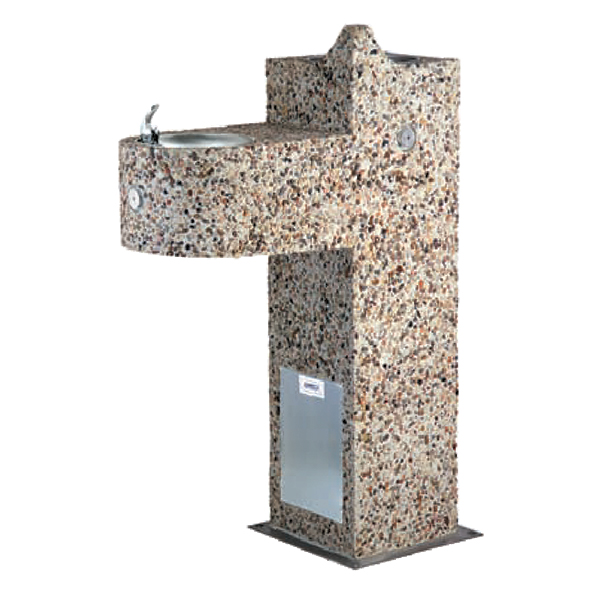

ADF-3700-C SERIES DUAL AGGREGATE FOUNTAIN

These all-purpose fountains are ideal for high traffic and maintain a great finish in rough environments. Delivers 8.0 GPH of chilled water refreshment. Surface type with mounting plate welded to pedestal. -FP are frost proof models. It is recommended that a dual check valve backflow prevention be installed in the waterline going to any FP fountain. -FPS are sanifrost models which will not allow stored water to re-enter the bubbler.

Product Number for the DUAL AGGREGATE FOUNTAINS:

ADF-3700-C, ADF-3700-C-FP, ADF-3700-FPS

ADF-3701-C, ADF-3701-C-FP, ADF-3701-FPS

OPTIONS: –

31 | Chrome Plated Self-closing Jug Filler

-32 | RCP Compression Type, Hose bibb with VB

-32-LK | RCP Compression Type, Hose bibb with VP and Loose Key

-32-SC | Self Closing Hose bibb with VB

-33-VP | Compression Type, Hose Bibb with S.S. Box with Locking Cover

-34 | Frost Proof Jug Filler

-34-FPS | Sanifrost Jug Filler (-FPS Units Only)

-36 | Push Button Jug Filler

-37 | Foot Spray

-38 | Shutdown/Drain Valve

-40 | Commemorative Plaque

-42 | S.S. Bubbler Guard

-65 | Matching Step for Square Fountain

-84 | Water Filter

-85 | Valve Box (Recommended for -FP Units)

-94 | Pet Fountain-attached

-94-FP | Frost Proof

-94-FPS | Sanifrost (-FPS Units Only)

-95 | Sand Trap

-96 | Sand Strainer Plate

SMP-12S | Surface Mounting Plate

Mounting plate and stainless steel bottom plate come standard

Access plates are vandal resistant and provide easy maintenance

Push button valve, centered on vandal resistant stainless steel access plate

Steel bubbler guard(s) and chrome plated brass bubbler

18 gauge brush finished stainless steel receptor with a vandal resistant chrome plated brass drain plug

Stainless steel supply fittings connected to reinforced tubing

Available in single, double or triple fountain styles (See APF-3500 or ADF-3900)

Supply complete with 1/2” IPS lock shield screwdriver stop

1-1/4” IPS waste pipes included with every fountain

ADF-3700-C 40″H x 12″W x 30″L with 15″ / square base, Colorama, light etched
ADF-3701-C 40″H x 12″W x 30″L with 15″ / square base, Colorama, medium etched
ADF-3700-Q 40″H x 12″W x 30″L with 15″ / square base, Quiet Creek, light etched
ADF-3701-Q 40″H x 12″W x 30″L with 15″ / square base, Quiet Creek, medium etched

All dimensions subject to manufacturing variance of plus or minus 1/4″ (6 mm).
