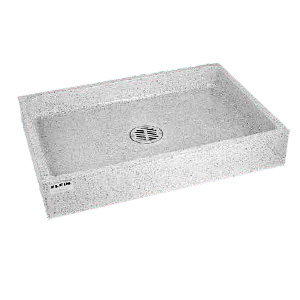

EBR-66 SERIES ELFIN RECTANGULAR
The ELFIN is a rugged economical unit with plain curbs on all sides. It is installed quickly in one single operation on the finished floor. All models except the corner unit come with a 3” centered brass drain with removable flat stainless steel strainer and screws. The drain for the corner model is located 12” off the back walls to help avoid spills.
This unit can be furnished with aluminum or vinyl bumper guards, OR cast integral stainless steel caps, on the exposed sides of the basin. Please see the accessories section for additional information on the bumper guards. The ELFIN is available in four square models, one rectangular, and one corner model. The economical Elfin series with 6” high sidewalls is designed for applications that require solid value and low cost. The low profile is both durable and attractive.
Product Numbers for the ELFIN RECTANGULAR:
EBR-66, EBR-74
Product number corresponds to dimensions tab below. Select your product number to fit the space you need.
Terrazzo composed of pearl gray marble chips cast in white Portland cement which produces a compressive strength of 3000 PSI seven days after casting; then ground smooth, grouted and sealed to resist stains and moisture.
Brass drain body is cast integral and provides for a caulked connection of not less that 1” deep to a 3” pipe.
Drain is centered on all models and comes with a twist lock stainless steel strainer
Installs on the finished floor – see instructions for details.
OPTIONAL COMPONENTS:
FITF-24 – Field Installable Tiling Flange
Constructed of Stainless Steel, 24″
FITF-36 – Field Installable Tiling Flange
Constructed of Stainless Steel, 36″
T-40-SF – Stainless Steel Shelf
Three mop hangers, a towel rod and multiple large open hooks
EBR-66 – 36x24x6”
EBR-74 – 36x32x6”
All dimensions subject to manufacturing variance of plus or minus 1/4″ (6 mm)
EBR66_ElfinRectangle_Spec-A
