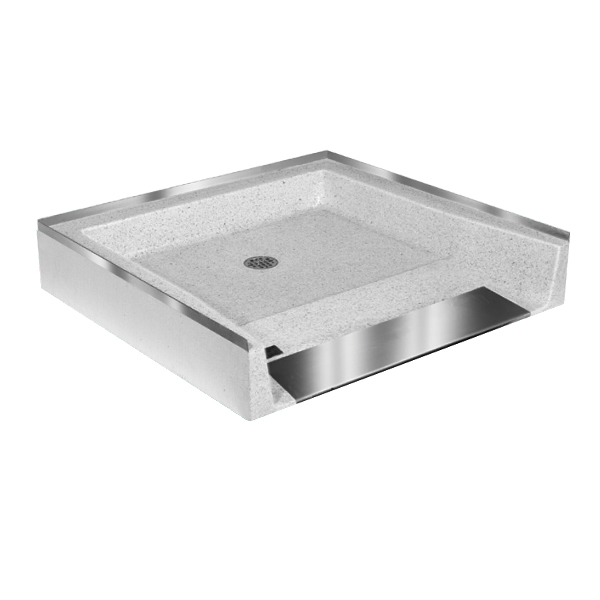

SERPENTINE FLOOR FOR WHEELCHAIRS
WS-Series Serpentine shower floors for the handicapped come with 6” stainless steel entry cap on integral ramp, available in recommended several sizes, with tiling flange on the remaining 3 sides for a water tight joint between the wall and shower floor.
Product Numbers for the SERPENTINE FLOOR FOR WHEELCHAIRS:
WS-3200, WS-3500, WS-3501, WS-3502, WS-3503, WS-3504, WS-3505
Product number corresponds to dimensions tab below. Select your product number to fit the space you need.
Option(s):
RDM Collapsible Water Dam recommended (HC, WDA, WS Series)
Attractive, 20 gauge cast in stainless steel cap covers and brightens the leading 6% of the 12” integral ramp
A cast in water dam is standard to help reduce water run off
A floor drain by others at the entrance to the sloped threshold and a collapsible water dam (Option: -RDM) are recommended for added protection
WS-3503/4/5 are ADA Compliant
Institutional 6” sidewall; Barrier Free
WS-3200 – 36×36”
WS-3500 – 48×48”
WS-3501 – 60×48”
WS-3502 – 60×60”
WS-3503 – 42×70”
WS-3504 – 48×70”
WS-3505 – 60×70”
All dimensions subject to manufacturing variance of plus or minus 1/4” (6 mm)
WS_SerpentineRoll_Spec-A
