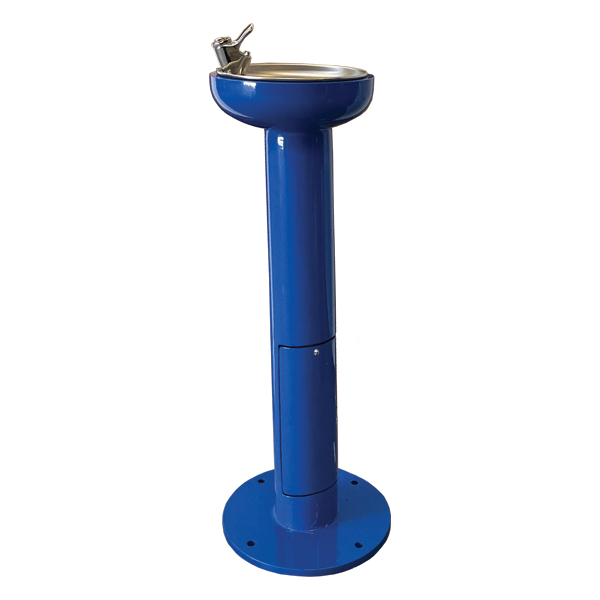

4300 SERIES SINGLE PEDESTAL FOUNTAIN

Appropriate for playgrounds, shopping areas or any high traffic area where cost is a consideration. Standard features include chrome-plated brass bubbler locked to stainless steel receptor. Fountain has a cross-arm, self-closing, chrome-plated valve and a 12” diameter floor flange which gives it an exceptionally sturdy mounting base. Equipped with automatic flow regulation. Product Number for ECONOMY DRINKING FOUNTAINS: 4300 (Lever handle) 4400 (Push button, surface mount) 4430 (Lever handle, surface mount) Options: SMP-6 | Surface mounting plate -85 | Valve box with lid -96 | Sand Strainer Plate -SS | Stainless steel finish

Column is fabricated from one piece steel pipe and all exposed parts are recessed in welded steel plates (4400 and 4430)

Mounting plate comes standard

Access plates are vandal resistant and provide easy maintenance

Steel bubbler guard(s) and chrome plated brass bubbler

Adjustable flow regulation

18 gauge brush finished stainless steel receptor with a vandal resistant chrome plated brass drain plug

Stainless steel supply fittings connected to reinforced tubing

Woodland green powder coat finish only

In-line mesh screen strainer

Supply complete with 1/2” IPS lock shield screwdriver stop

1-1/4” IPS waste pipes included with every fountain

4300 35″H x 12″ Dia. base /

4400 36″H x 12″ Dia. base / Single with surface mount
4430 36″H x 12″ Dia. base / Single with surface mount with level handle

All dimensions subject to manufacturing variance of plus or minus 1/4″ (6 mm).
