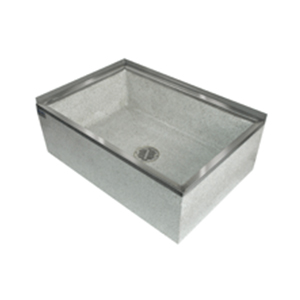

SB-300 SERIES SERVICEPTOR WITH STAINLESS STEEL CAPS

The most complete line of terrazzo Serviceptors for corner, recessed, pier or island installations, we offer square or rectangular models models in a choice of 4 sizes. All sinks are available with plain shoulders or integrally cast 20 gauge continuous stainless steel cap.

*Flange is across back and on left side on model numbers ending in “L”.
*Flange is across back and on right side on model numbers ending in “R”.
*Tiling flanges are optional, made of stainless steel, and extend 1″ above the shoulder on 1, 2, or 3 sides, as required.

Product Number for the SERVICEPTOR WITH STAINLESS STEEL CAPS:

(With One-Piece Stainless Steel Cap) The last digit of the model number indicates Numbers of Flange(s)(ie: 1, 2 & 3).

SB-300, SB-301, *SB-302-L, *SB-302-R, SB-303

SB-500, SB-501, SB-502, SB-503

SB-700, SB-701, SB-702, SB-703

SB-900, SB-901, SB-902, SB-903

Product Number for the SERVICEPTOR WITH FOUR STAINLESS STEEL CAPS:

SB-250, SB-450, SB-650, SB-850

​​Product number corresponds to dimensions tab below. Select your product number to fit the space you need.

Terrazzo composed of pearl gray marble chips cast in white Portland cement which produces a compressive strength of 3000 PSI seven days after casting; then ground smooth, grouted and sealed to resist stains and moisture

Drain is centered on all models and comes with a twist lock stainless steel strainer

Installs on the finished floor

Shoulders shall not be less than 9-3/4″ high inside measurement, and not less than 1-1/4″ wide

Drain shall be stainless steel cast integral with removable stainless steel strainer, and shall provide for a gasket or a caulked lead connection not less than 1″ deep to a 3″ pipe

Stainless steel caps are continuous or 4 pieces 20 gauge stainless steel and cast integral (see product number description above)

OPTIONAL COMPONENTS:

FITF-24 – Field Installable Tiling Flange
Constructed of Stainless Steel, 24″

FITF-36 – Field Installable Tiling Flange
Constructed of Stainless Steel, 36″

T-40-SF – Stainless Steel Shelf
Three mop hangers, a towel rod and multiple large open hooks



(With One-Piece Stainless Steel Cap) The last digit of the model number indicates Numbers of Flange(s)(ie: 1, 2 & 3).
SB-300, SB-301, SB-302L, SB-302R, SB-303- 36x24x12”

SB-500, SB-501, SB-502, SB-503 – 36x36x12”

SB-700, SB-701, SB-702, SB-703 – 32x32x12”

SB-900, SB-901, SB-902, SB-903 – 24x24x12”



With Four Stainless Steel Caps
SB-250 – 36x24x12″

SB-450 – 36x36x12″

SB-650 – 32x32x12″

SB-850 – 24x24x12”

All dimensions subject to manufacturing variance of plus or minus 1/4″ (6 mm)
